Air valve 12 / 24 / 220 volts

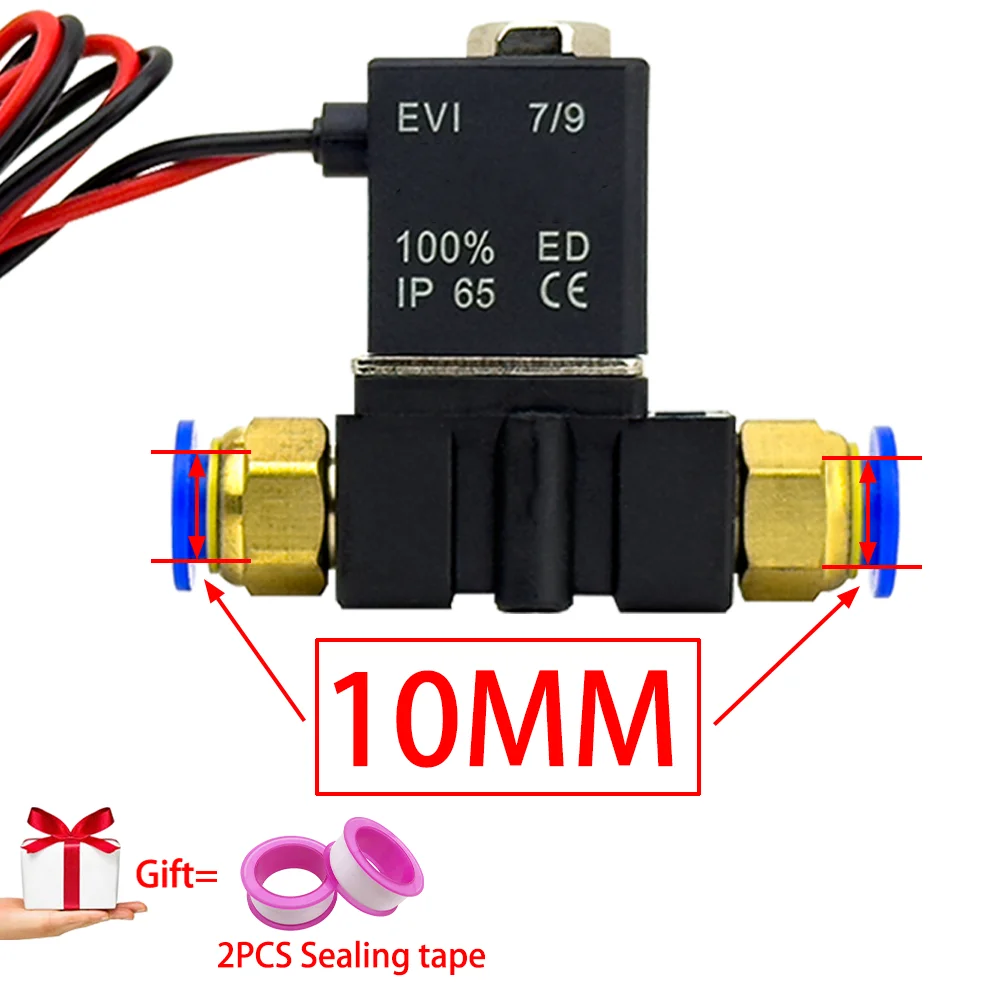

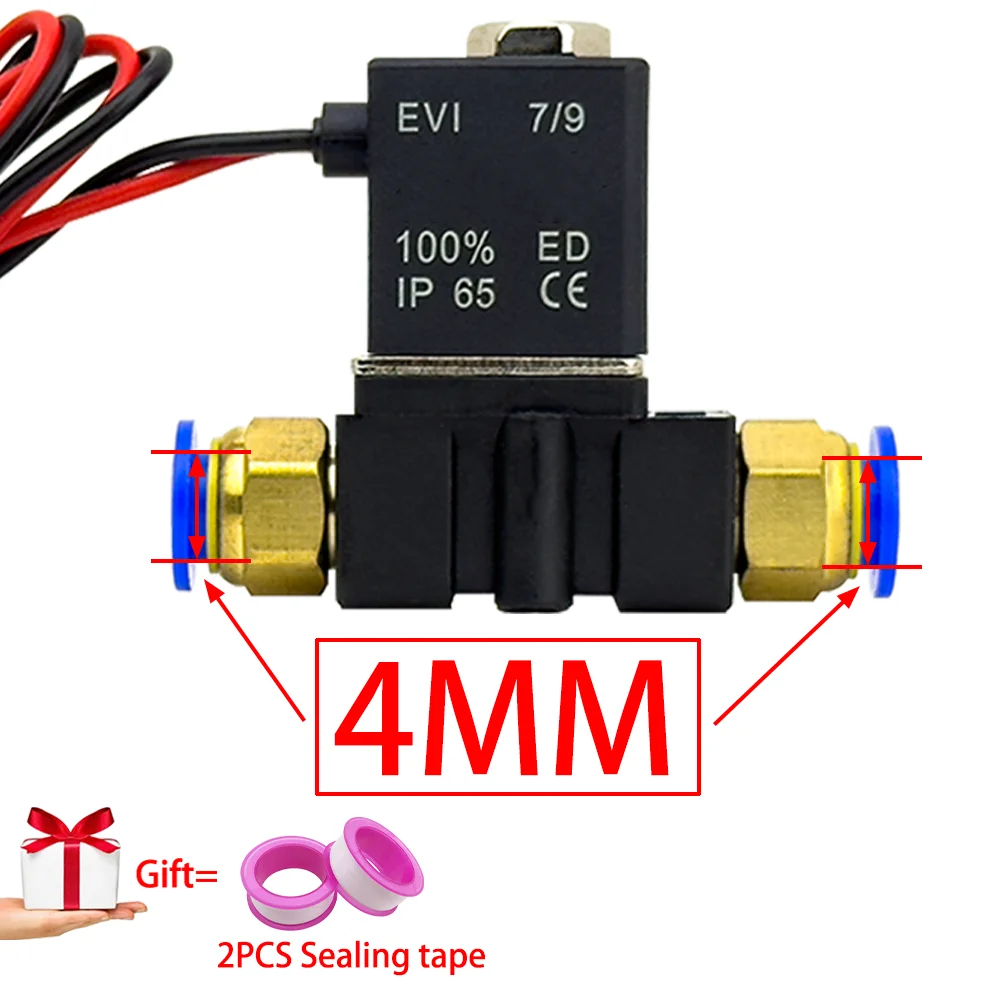

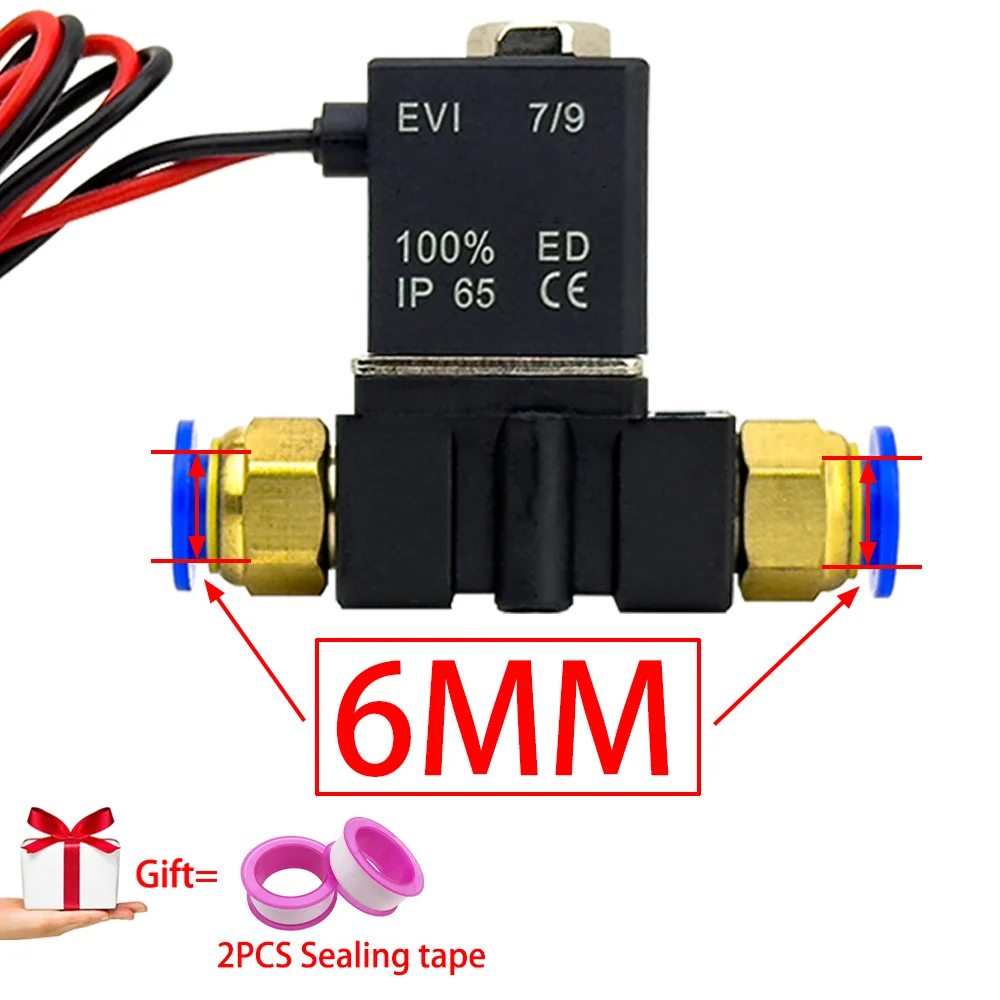

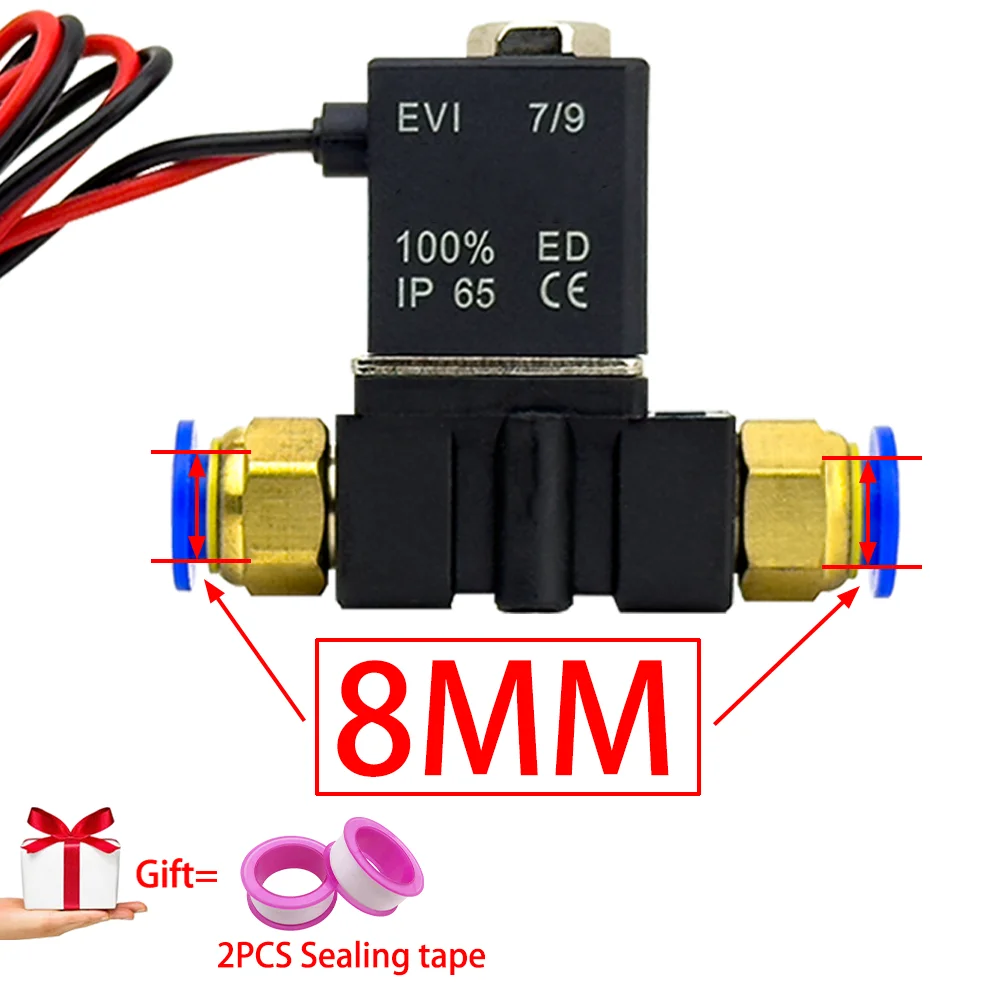

Electric Solenoid Valve – Product Specifications Technical Specifications Valve type: Two-way (2/2 Way) normally closed (NC), opens when the electrical coil is energized. Port size: 1/4 inch (female thread). Copper outlet connection diameters: 4 / 6 / 8 / 10 / 12 / 14 / 16 mm. Available operating voltage: DC 12V, DC 24V, AC 110V, AC 220V. Materials used Valve body: High-quality engineering plastic. Sealing material: NBR (Buna-N) resistant to corrosion and leakage. Coil tube: Copper. Piston and spring: Stainless steel. Operating conditions Operating temperature: from 0 to 60 degrees Celsius. Operating pressure range: 0.15 to 0.8 MPa. Maximum pressure withstand: 1.0 MPa. Protection level: IP65 resistant to dust and water spray. Operating mechanism: Internal pilot operated. Features Durable and corrosion-resistant design. Fast response and high precision in controlling airflow or liquids. Excellent sealing thanks to high-quality NBR seals. Suitable for compressed air systems, water, and various industrial applications. IP65 protection level ensures reliable performance in industrial environments.
