Multiparameter Patient Monitor

The Multiparameter Patient Monitor provides an integrated solution for monitoring a wide range of vital signs in clinical environments. The Multiparameter Patient Monitor supports ECG, respiration, SpO2, pulse rate, non-invasive blood pressure, and temperature as standard parameters, with optional IBP, EtCO2, 12-lead ECG, and other advanced configurations.

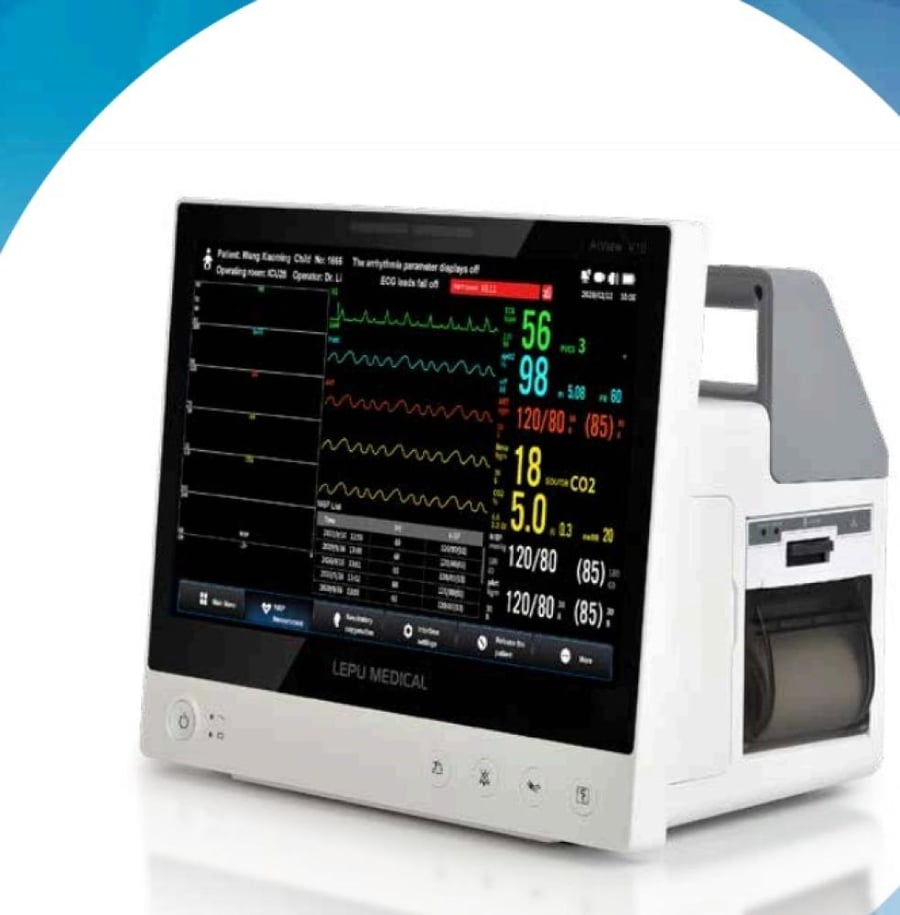

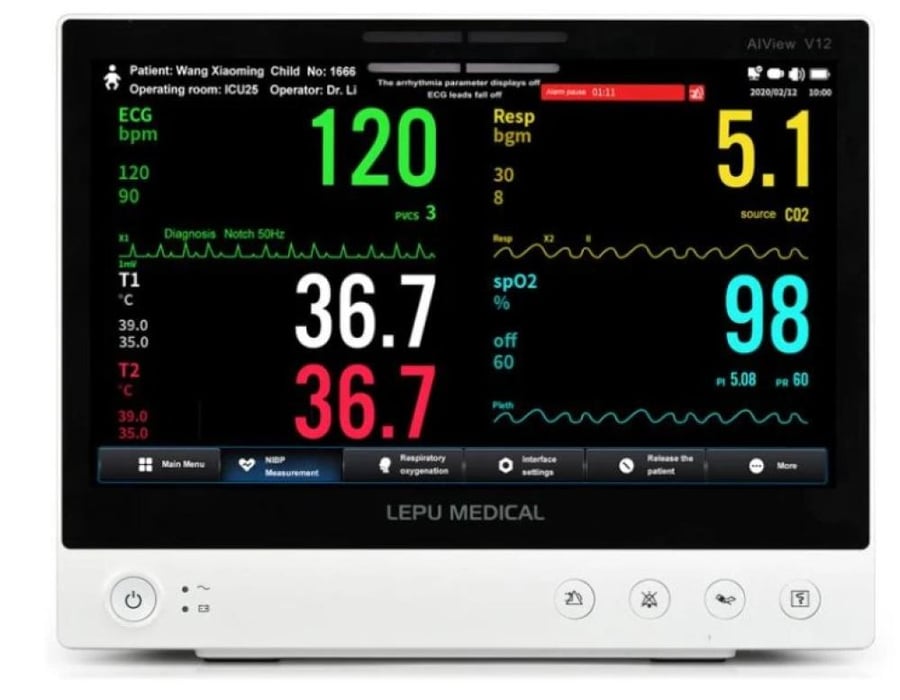

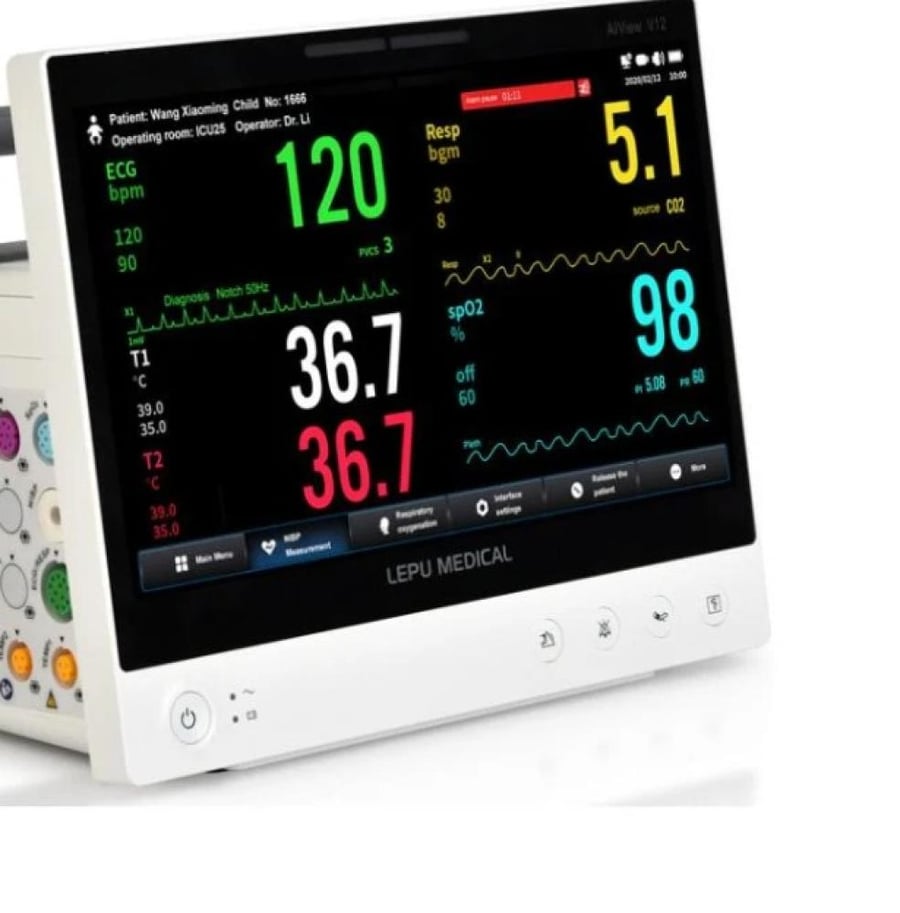

The Multiparameter Patient Monitor features a large 13.3-inch TFT display for clear visualization of patient readings and waveforms. This allows healthcare professionals to monitor multiple parameters and review clinical data efficiently during patient care.

Key Features of the Multiparameter Patient Monitor

• Multiple Vital Sign Measurements: The Multiparameter Patient Monitor supports ECG, RESP, SpO2, PR, NIBP, and temperature monitoring.
• Large TFT Display: The Multiparameter Patient Monitor features a 13.3-inch TFT display for clear viewing of waveforms and measurements.
• ECG Monitoring: The Multiparameter Patient Monitor measures heart rate from 15 to 350 bpm, with an optional 12-lead ECG configuration.
• Respiration Monitoring: Thoracic impedance is used to measure respiration rate for adult, pediatric, and neonatal patients.
• SpO2 Monitoring: The device measures oxygen saturation from 0% to 100%, with optional Nellcor SpO2 support.
• Non-Invasive Blood Pressure: The Multiparameter Patient Monitor supports MANU, AUTO, STAT, and Series NIBP measurement modes.
• Temperature Monitoring: The device measures temperature within a range of 0°C to 50°C.
• Optional IBP and EtCO2: IBP and EtCO2 modules can be added according to clinical requirements.
• Wireless Connectivity: Wi-Fi is included in the standard configuration.
• Rechargeable Lithium Battery: The Multiparameter Patient Monitor uses a 10.95V / 2750mAh internal lithium battery, with an optional 5500mAh battery available.

Multiparameter Patient Monitor for Clinical Use

The Multiparameter Patient Monitor is designed to help healthcare professionals monitor multiple vital signs through a single medical device. Combining ECG, SpO2, NIBP, respiration, pulse rate, and temperature monitoring provides a comprehensive overview of the patient's condition during clinical monitoring.

The Multiparameter Patient Monitor can also be customized with additional modules and accessories, including IBP, EtCO2, Nellcor SpO2, SunTech NIBP, 12-lead ECG, workstation connectivity, and an AI module.

Monitoring Parameters

ECG

The Multiparameter Patient Monitor measures heart rate from 15 to 350 bpm with an accuracy of ±1% or ±1 bpm, whichever is greater. Supported waveform sweep speeds include 6.25, 12.5, 25, and 50 mm/s.

RESP

The device uses thoracic impedance to measure respiration rate. The measurement range is 0 to 120 rpm for adults and up to 150 rpm for pediatric and neonatal patients.

SpO2 and PR

The Multiparameter Patient Monitor measures oxygen saturation from 0% to 100%, with ±2% accuracy within the 70% to 100% range. Pulse rate measurement ranges from 30 to 250 bpm.

NIBP

The device measures non-invasive blood pressure within a range of 0 to 300 mmHg and supports multiple measurement modes, including MANU, AUTO, STAT, and Series.

TEMP

The Multiparameter Patient Monitor measures temperature from 0°C to 50°C, with accuracy up to ±0.1°C within the specified measurement range.

IBP and EtCO2

Optional IBP modules are available for invasive pressure monitoring, while EtCO2 supports both Sidestream and Mainstream measurement modes.

Technical Specifications

• Product Type: Multiparameter Patient Monitor
• Display: TFT
• Screen Size: 13.3 inches
• Standard Battery: Lithium 10.95V / 2750mAh
• Optional Battery: Lithium 10.95V / 5500mAh
• Standard Configuration: ECG, Respiration, SpO2, PR, NIBP, Temperature, Wi-Fi
• Optional Features: 2-IBP, EtCO2, Nellcor SpO2, SunTech NIBP, 12-lead ECG, Workstation, AI Module

The Multiparameter Patient Monitor combines comprehensive vital sign monitoring with a large 13.3-inch display, Wi-Fi connectivity, rechargeable battery power, and multiple configuration options. The Multiparameter Patient Monitor is suitable for healthcare facilities that require flexible and comprehensive patient monitoring under professional medical supervision.
