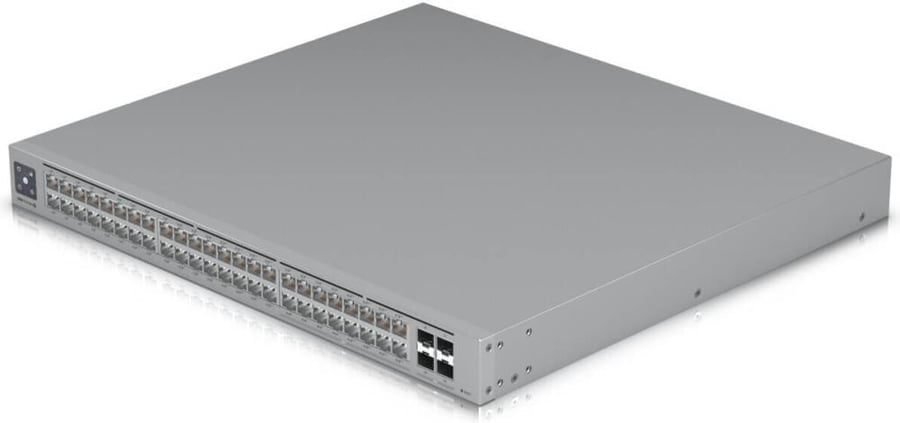

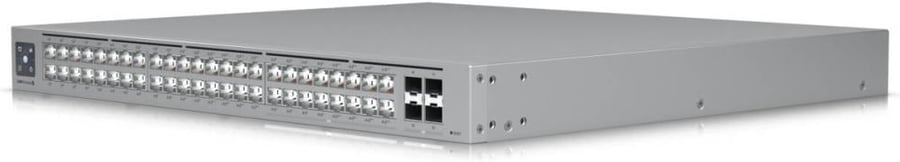

Ubiquiti Pro Max 48 PoE Network Switch, 1.3" Touchscreen, 32x GbE RJ45 ports, 224 Gbps Switching Capacity, 720W Total Available PoE, SGCC Steel Material, Black | USW-Pro-Max-48-PoE (720W)

نظرة عامة:
Ubiquiti Networks Pro Max 48 PoE 48-Port 2.5G / 1G PoE++ Compliant Managed Network Switch

الوصف والمميزات:
Pro Max 48 PoE
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Specifications
Mechanical
Dimensions
442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Hardware
Management Interface
Ethernet In-Band
Networking Interface
(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
PoE Interface
(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total Non-Blocking Throughput
112 Gbps
Switching Capacity
224 Gbps
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power Supply
AC/DC, internal, 820W
Supported Voltage Range
100—240V AC
Max Power Consumption
100W (Excluding PoE output)
Total Available PoE
720W
Max PoE Wattage per Port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage Range PoE Mode
PoE: 44—57V
PoE+: 50—57V
LCM Display
(1) 1.3" touchscreen
Button
Factory reset
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System
Status
RPS
Status
Application Requirements
UniFi Network
Version 8.0.24 and later
