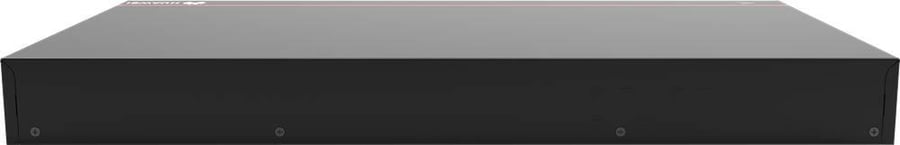

HUAWEI eKit AR720 Enterprise Router, 2 GE Combo WAN, 8 GE LAN, 9 Mpps to 25 Mpps Forwarding Performance, Up to 700 Terminals, 1U Chassis, Built-In AC Power, Built-In Fan Module | 02354GBG-001

نظرة عامة:
GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE*2 combo LAN, 2*USB, 2*SIC, up to 700 users, forwarding performance 4Gbps

الوصف والمميزات:
AR720
HUAWEI eKit AR720 router with 2 GE combo WAN ports, 8 GE LAN ports, up to 700 connected terminals and 9–25 Mpps forwarding performance.
Specifications
Forwarding Performance
9 Mpps to 25 Mpps
Number of Connected Terminals
Up to 700
Installation Type
Rack, Work Bench, Against the Wall
Chassis Height
1U
RTC
Supported
Typical Power Consumption
28 W
Maximum Power Consumption
33 W
Power Supply Mode
AC Built-in
Number of Power Modules
1
Input Voltage Range
90–264 V, 47–63 Hz
Maximum Output Power
70 W
LAN Ports
8 × GE electrical interfaces
WAN Ports
2 × GE Combo
Safety Regulation Certification
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, GB 4943.1
EMC Certification
EN 55032, EN 55035, CISPR 32, GB 9254, EN 55024, CISPR 24, GB/T 17618, EN 300 386, VCCI-CISPR 32, AS/NZS CISPR32, IEC 61000-3-2/EN 61000-3-2, IEC 61000-3-3/EN 61000-3-3
Fan Type
Built-in
Number of Fan Modules
1
Operating Temperature
0°C to 45°C (32°F to 113°F)At 1800–5000 m altitude, maximum operating temperature decreases by 1°C (1.8°F) for every 220 m (722 ft.) increase in altitude
Operating Relative Humidity
5% RH to 95% RH, non-condensing
Airflow
Left-to-right airflow
Environmental Standards Compliance
RoHS, REACH, WEEE
