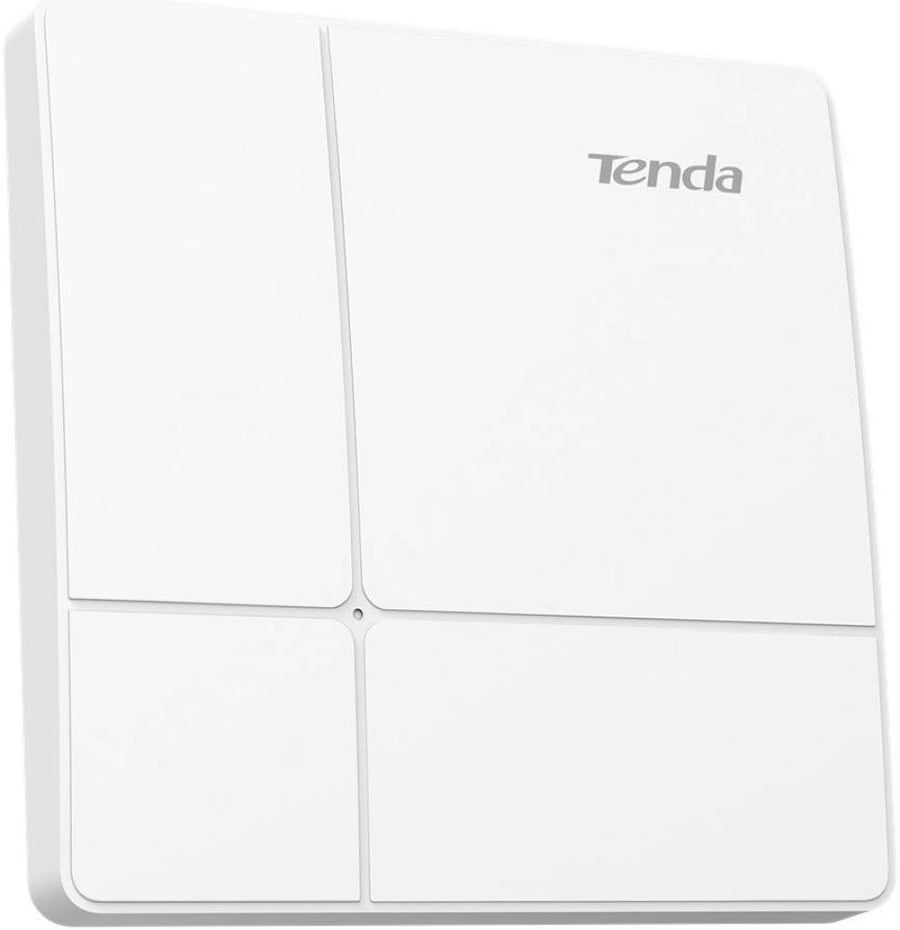

Tenda AC1200 Dual Band Gigabit Wireless Access Point, Up to 3200 sq.ft Coverage, Up to 1167 Mbps Data Rate, Built-in OD Antennas, PoE Powered, Support IEEE 802.11ac Wave 2 & MU-MIMO, White | I24

نظرة عامة:
11AC Wave2 Gigabit Desktop Access Point Series

الوصف والمميزات:
i24
AC1200 Wave 2 Gigabit Access Point
i24 is a gigabit dual-band ceiling access point that is compliant with IEEE 802.11ac Wave 2 and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, you enjoy a better experience. And the built-in omnidirectional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving a long-distance power supply without tampering with your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.
Key Features
Compliant with IEEE 802.11ac Wave 2, offering a concurrent data rate of up to 1167 Mbps.
Powered by MU-MIMO technology for an improved wireless experience.
Built-in omnidirectional antennas to extend wireless coverage from a single access point.
Adjustable transmit power via the web user interface for customized coverage.
IEEE 802.3at-compliant PoE (Power over Ethernet) support for long-distance power supply without network disruption.
Compatibility with Tenda access controllers (AC) for centralized configuration and management of multiple i24 access points.
Specifications
Hardware
Details
Ethernet Interface
1 x 10/100/1000 Base TX
Antenna
2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi
Button
1 x RESET
LED Indicator
1 x SYS
Maximum Power Consumption
<11.5W<br>Power Supply Standard<br>802.3af/at and DC: 12V 1A<br>Wireless<br>Details<br>Frequency Band<br>2.4GHz<br>Data Rate<br>2.4GHz: 300Mbps<br>5GHz: 867Mbps<br>Wireless Standard<br>802.11a/b/g/n/ac(wave2)<br>Max Transmit Power<br>2.4GHz: 23dBm<br>5GHz: 23dBm<br>Sensitivity<br>802.11b: -93 dBm<br>2.4 GHz 802.11n (MCS7): -73dBm<br>5 GHz 802.11a: -93 dBm<br>5 GHz 802.11n (MCS7): -74 dBm<br>Software<br>Details<br>MU-MIMO<br>Support<br>Operating Mode<br>AP/Client AP<br>Hide SSID<br>Support<br>Max. No. of SSID<br>2.4GHz: 8<br>5GHz: 4<br>Max. Connected Clients<br>256<br>WEP<br>Support<br>WPA-PSK<br>Support<br>WPA2-PSK<br>Support<br>WPA<br>Support<br>WPA2<br>Support<br>Access Control<br>Support<br>Adjustable Power Transmit<br>Support<br>AP Isolation<br>Support<br>Connected Clients Control<br>Support<br>RSSI Threshold<br>Support<br>WMM<br>Support<br>VLAN Tagging for SSID<br>Support<br>LED Control<br>Support<br>Diagnostics<br>Support<br>Schedule Reboot<br>Support<br>Reboot at Specified Interval<br>Support<br>Centralized Management<br>Support<br>System Logs<br>Support<br>Firmware Upgrade<br>Support<br>Reboot<br>Support<br>Reset Button<br>Support<br>Others<br>Details<br>Default Login IP<br>192.168.0.254<br>Default Login Username<br>admin<br>Default Login Password<br>admin<br>Operation Temperature<br>-10°C ~ 40°C<br>Operating Humidity<br>10%~90% non-condensing<br>Storage Temperature<br>-30°C ~ 70°C<br>Storage Humidity<br>10%~90% non-condensing<br>Dimension<br>178 x 178 x 38mm</p>
