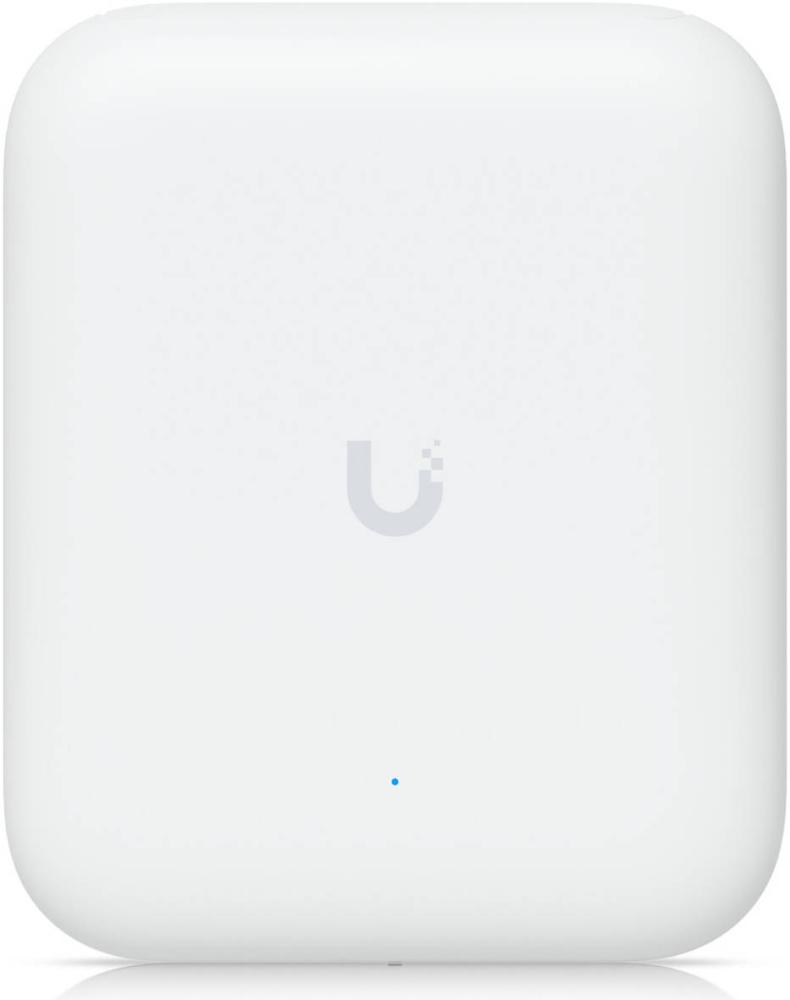

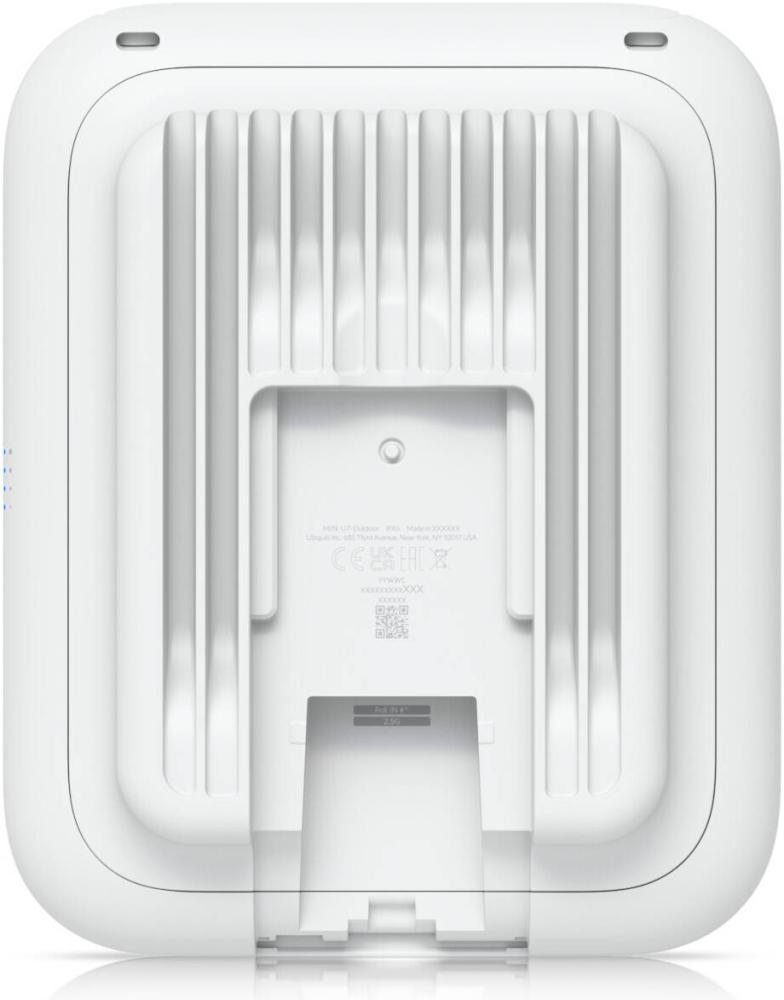

Ubiquiti U7 Outdoor UniFi WiFi 7 Access Point, WiFi 7, 4 Spatial Streams, Software-Switchable, 200+ Connected Devices, 2.5 GbE Uplink, Weatherproof, White | U7-Outdoor

نظرة عامة:
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options

الوصف والمميزات:
U7 Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Specifications
Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
Weight
1.2 kg (2.6 lb)
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Polycarbonate, SGCC steel
Pole Mount Diameter
25–60 mm (1–2.36") on pipe outer diameter
Wind Survivability
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Networking Interface
(1) 1/2.5 GbE RJ45 port
Management Interface
Ethernet
Power Method
PoE+
Power Supply
UniFi PoE Switch
Supported Voltage Range
42.5–57V DC
Max. Power Consumption
19W
Max. TX Power (2.4 GHz)
23 dBm
Max. TX Power (5 GHz)
26 dBm
Max. TX Power (6 GHz)
–
MIMO (2.4 GHz)
2 x 2 (DL/UL MU-MIMO)
MIMO (5 GHz)
2 x 2 (DL/UL MU-MIMO)
MIMO (6 GHz)
–
Max. Data Rate (2.4 GHz)
688 Mbps (BW40)
Max. Data Rate (5 GHz)
4.3 Gbps (BW240)
Max. Data Rate (6 GHz)
–
Antenna Gain (2.4 GHz)
Directional internal: 8 dBi / External omni: 3 dBi
Antenna Gain (5 GHz)
Directional internal: 12.5 dBi / External omni: 4 dBi
Antenna Beamwidth
2.4 GHz: 90° / 5 GHz: 45°
Antennas
(1) Directional internal antenna, (2) External omni antennas, (2) RP-SMA connectors
LEDs
Power: white/blue, Mesh signal: blue
Button
Factory reset
Mounting
Wall, ceiling, pole (Included)
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
200+
Supported Data Rates
802.11a/b/g/n/ac/ax/be with speeds up to 4.3 Gbps
Application Requirements
UniFi Network Version 8.3 and later
