Huawei eKitEngine AP160 Wi Fi 6 Wall Plate Access Point, Dual-radio mode 2.4 GHz (2x2) + 5 GHz (2x2), Providing Maximum Rate of 575 Mbps & 1.2 Gbps, Built-in Smart Antenna, 8 mm Panel | AP160

نظرة عامة:
Wireless LAN Equipment, AP160, Ap160(11ax Indoor, 2+2 dual bands, Smart Anetenna) AP160,RJ45*2,11ax, Dual Bands

الوصف والمميزات:

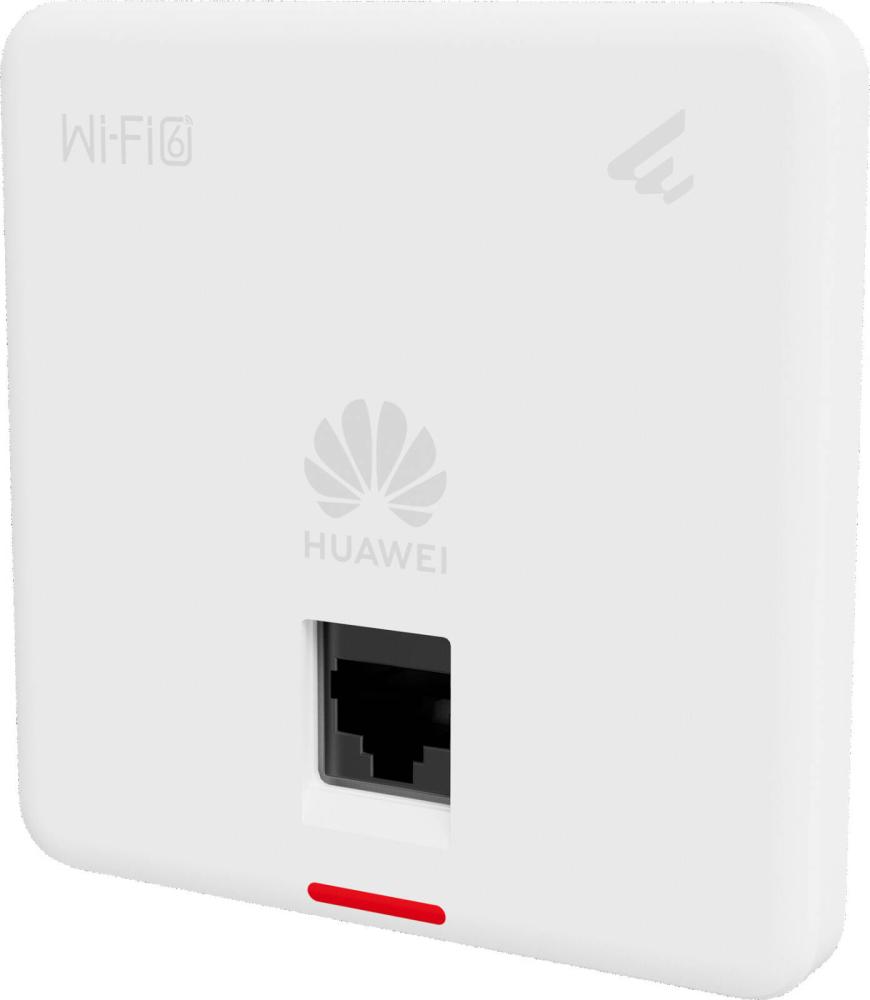

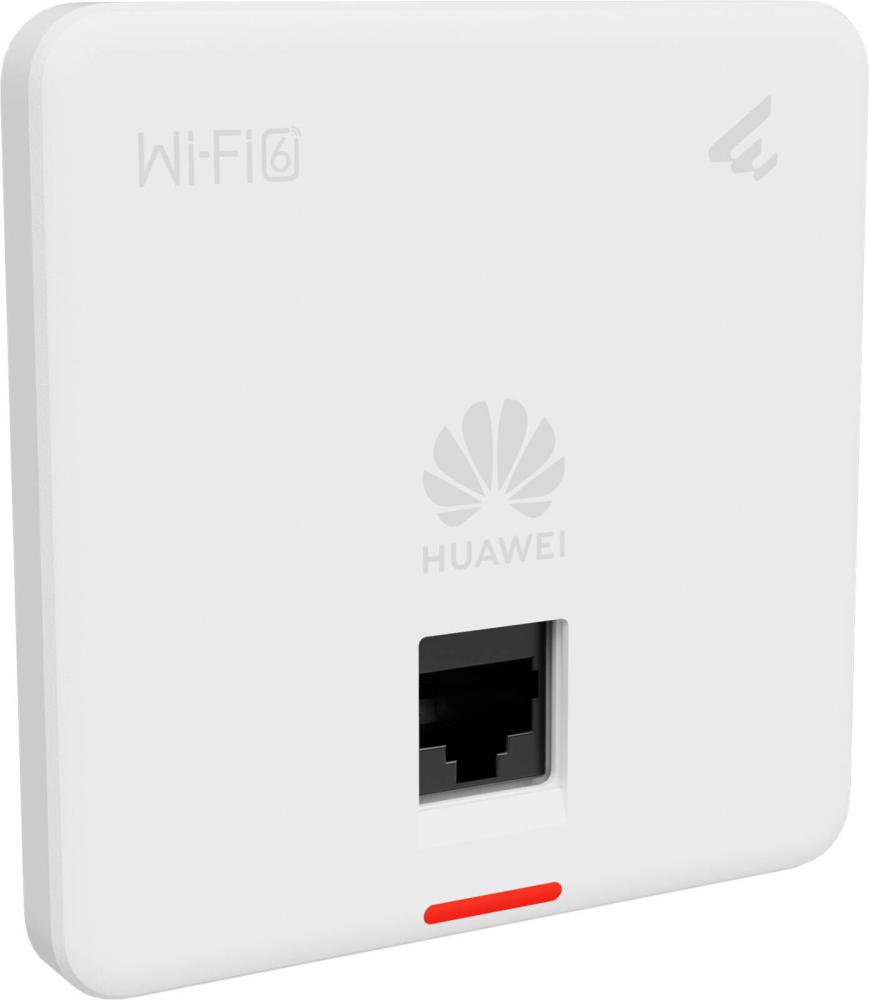

Huawei eKitEngine AP160
Huawei eKitEngine AP160 is a Wi-Fi 6 (802.11ax) wall plate 86x86 access point (AP) with an 8 mm ultra-thin panel. It provides services simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, achieving a maximum device rate of 1.775 Gbps. This AP features high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is ideal for indoor coverage scenarios such as enterprise workplaces, commercial real estates, and budget chain hotels.
Specifications:
Model Name
Huawei eKitEngine AP160
Wi‑Fi Standard
Wi‑Fi 6 (802.11ax) with dual-band 2×2 (2.4 GHz & 5 GHz)
Max Data Rate
1.775 Gbps (575 Mbps @2.4 GHz + 1.2 Gbps @5 GHz)
Spatial Streams
2×2 MU‑MIMO on both bands
Antenna Type & Gain
Built-in smart antennas; 2.4 GHz: 3 dBi, 5 GHz: 2 dBi per chain
Ethernet Ports
1× GE uplink (PoE-in), 1× GE downlink
PoE Support
IEEE 802.3af (PoE)
Max Power Consumption
9.1 W; heat dissipation: 29.5 BTU/hr
Dimensions
86 × 86 × 42.5 mm panel; 8 mm surface thickness
Weight
0.14 kg
Operating Conditions
Temp: 0–40 °C (derate above 1800 m); humidity: 5–95% non-condensing
Altitude Range
–60 m to +5000 m
Atmospheric Pressure
53–106 kPa
