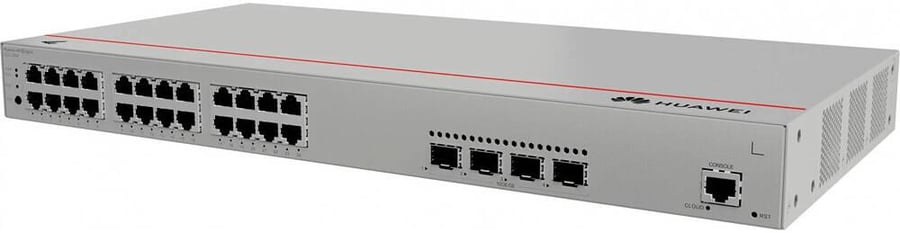

Huawei S220-24P4X Switches, 24 x 10/100/1000BASE-T Ports, 4 x 10GE SFP+ Ports, 400W PoE+, Built In AC Power, 95Mpps Packet Forwarding Rate, 128Gbit/s Switching Capacity | 98012376

نظرة عامة:
(+S220-24P4X (24*10/100/1000BASE-T Ports (400W POE 10GE SFP+ Ports,Built-in AC Power*4

الوصف والمميزات:
S220-24P4X
Huawei eKit SME Network switches are designed for the SMB market. They feature flexible Ethernet networking, diversified security control, and abundant management methods, and provide higher performance and richer service processing capabilities. Widely used in economic hotels, factories, small and medium-sized education, shelter hospitals, buildings Scenarios.
Specifications
Part Number
98012376
Model
S220-24P4X
First Supported Version
V600R023C00
Dimensions (without packaging)
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Dimensions (with packaging)
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis Height
1 U
Chassis Material
Metal
Weight (without packaging)
2.92 kg (6.44 lb)
Weight (with packaging)
3.79 kg (8.36 lb)
Typical Power Consumption
37.12 W
Maximum Power Consumption
Without PoE: 44.35 W, Full PoE load: 485.91 W (PoE: 400 W)
Maximum Heat Dissipation
Without PoE: 151.32 BTU/hour, Full PoE load: 1657.92 BTU/hour
Static Power Consumption
27.07 W
MTBF (Mean Time Between Failures)
60.18 years
MTTR (Mean Time To Repair)
2 hours
Availability
> 0.99999
Noise (Acoustic Power)
49.3 dB(A)
Noise (Acoustic Pressure)
37.3 dB(A)
Number of Card Slots
0
Number of Power Slots
0
Number of Fan Modules
2
Uplink Ports
4 x 10GE SFP+ ports
Downlink Ports
24 x 10/100/1000BASE-T ports (400 W, PoE+)
Redundant Power Supply
Not supported
Power Supply Mode
AC built-in
Rated Input Voltage
AC input: 100 V AC to 240 V AC, 50/60 Hz
Maximum Input Current
6 A
Memory
2 GB
Flash Memory
1 GB
Console Port
RJ45
Eth Management Port
Not supported
USB Ports
Not supported
RPS Input
Not supported
Service Port Surge Protection
Common mode: ±7 kV
Power Supply Surge Protection
Differential mode: ±6 kV; Common mode: ±6 kV
Ingress Protection Level
IP20 (dustproof/waterproof)
Types of Fans
Built-in
Heat Dissipation Mode
Air cooling with intelligent fan speed adjustment
Airflow Direction
Air intake from left and front, air exhaust from right
PoE Support
Supported
Certification
EMC certification, Safety certification, Manufacturing certification
