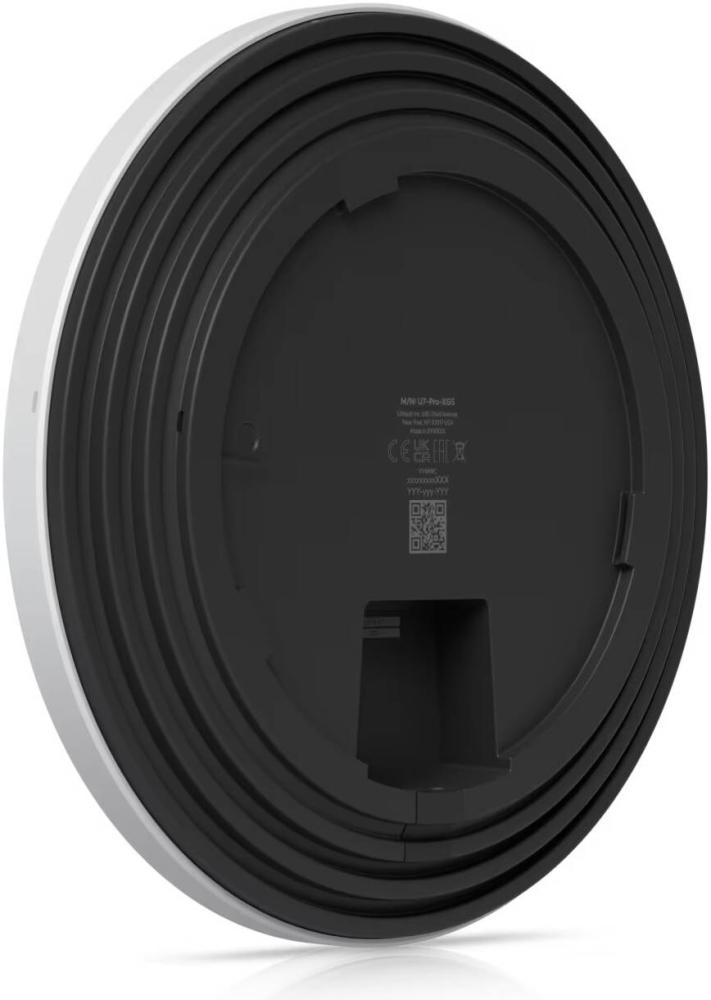

Ubiquiti U7 Pro XGS Access Point, Wi-Fi 7 with 6GHz Support, 8 Data Streams, Powered By PoE++, Hotspot 2.0, Zero-Wait DFS, Internal Antenna Type, 1x 10GbE PoE+ RJ45 Port Interface, White | U7-Pro-XGS

نظرة عامة:
Ceiling-mounted 8-stream WiFi 7 AP with dedicated .spectral scanning radio and 10/5/2.5/1 GbE support

الوصف والمميزات:
U7 Pro XGS
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Specifications
Dimensions
Ø215 × 32.5 mm (Ø8.5 × 1.3")
WiFi Standard
WiFi 7
Spatial Streams
8
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
500+
Uplink
10 GbE
Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE++
MIMO (6 GHz)
2×2 DL/UL MU-MIMO
MIMO (5 GHz)
4×4 DL/UL MU-MIMO
MIMO (2.4 GHz)
2×2 DL/UL MU-MIMO
Max Data Rate (6 GHz)
5.8 Gbps (BW320)
Max Data Rate (5 GHz)
8.6 Gbps (BW240)
Max Data Rate (2.4 GHz)
688 Mbps (BW40)
Antenna Gain (6 GHz)
6 dBi
Antenna Gain (5 GHz)
6 dBi
Antenna Gain (2.4 GHz)
4 dBi
Max TX Power (6 GHz)
24 dBm
Max TX Power (5 GHz)
29 dBm
Max TX Power (2.4 GHz)
23 dBm
Max BSSIDs
8 per radio
Supported Data Rates – WiFi 7 (802.11be)
6 GHz: 7.3 Mbps–5.8 Gbps (MCS0–13, NSS1/2) • 5 GHz: 7.3 Mbps–8.6 Gbps (MCS0–13, NSS1–4)
Supported Data Rates – WiFi 6 (802.11ax)
7.3 Mbps–4.8 Gbps (MCS0–11, NSS1–4)
Supported Data Rates – WiFi 5 (802.11ac)
6.5 Mbps–3.4 Gbps (MCS0–9, NSS1–4)
Supported Data Rates – 802.11n
6.5 Mbps–600 Mbps (MCS0–31, HT20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management
✓
Zero-Wait DFS
✓
Advanced Radio Management
✓
Real-Time Spectral Analysis
✓
Passpoint (Hotspot 2.0)
✓
Captive Portal
Custom Branding
Voucher Authentication
✓
Payment Based Authentication
✓
External Portal Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private PSK (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS VLAN
✓
Max Power Consumption
29W
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 10 GbE RJ45
Weight
800 g (1.8 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
White / Blue
Channel Bandwidths
HT/VHT/HE/EHT 20–320 MHz
NDAA Compliant
✓
Certifications
CE, FCC, IC
Operating Frequency (US/CA – 2.4 GHz)
2400–2472 MHz
Operating Frequency (U-NII-1)
5150–5250 MHz
Operating Frequency (U-NII-2A)
5250–5350 MHz
Operating Frequency (U-NII-2C)
5470–5725 MHz
Operating Frequency (U-NII-3)
5725–5850 MHz
Operating Frequency (U-NII-5–8)
5925–7125 MHz
Operating Frequency (Worldwide 2.4 GHz)
2400–2483.5 MHz
Operating Frequency (Worldwide 5 GHz)
5150–5725 MHz
Operating Frequency (Worldwide 6 GHz)
5925–7125 MHz
Operating Temperature
-30 to 40°C (-22 to 104°F)
Operating Humidity
5–95% non-condensing
Controller Requirement
UniFi Network
Firmware (White)
9.0.114+
Firmware (Black)
9.1.120+
