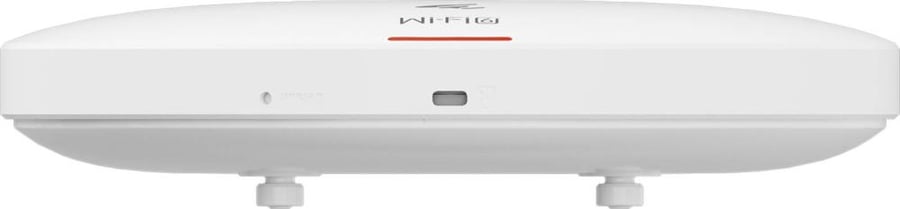

Huawei eKitEngine AP661 Access Point, Triple-Radio, Ultra-High-Speed, Wi-Fi 6, MU-MIMO, Built-in Smart Antennas, White | AP661

نظرة عامة:
Assembling Components,AP661(11AX Indoor,2+2+4 Tri (Band,Smart Antenna,USb BLE

الوصف والمميزات:
Huawei AP661
Access Point
Huawei eKitEngine AP661 is an indoor AP in compliance with Wi-Fi 6 (802.11ax). It can simultaneously provide services on 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) and 5 GHz (4x4 MIMO) frequency bands, achieving a device rate of up to 6.575 Gbps. Built-in smart antennas of the AP enable always-on Wi-Fi signals for users, significantly enhancing users' wireless experiences. These strengths make it ideal for densely populated scenarios such as mobile office, education, and stadiums.
Features
Enhanced User Capacity and Bandwidth: 802.11ax improves user access capacity and bandwidth, especially in high-density scenarios, reducing latency and enhancing overall user experience.
MU-MIMO Technology: Supports multi-user multiple-input multiple-output on both 2.4 GHz and 5 GHz bands, allowing simultaneous data transmission to and from multiple devices, optimizing radio spectrum usage.
1024-QAM Support: Delivers 25% higher data transmission efficiency compared to 802.11ac, which supports 256-QAM.
OFDMA Technology: Orthogonal Frequency Division Multiple Access allows simultaneous data transmission to multiple devices using different subcarriers, reducing latency and increasing network efficiency.
Spatial Multiplexing with BSS Coloring: Helps distinguish overlapping Basic Service Sets (BSSs), minimizing co-channel interference.
Target Wake Time (TWT): Negotiates sleep and wake times between the AP and devices, improving battery life of connected devices.
Specification
Attribute
Details
Installation Mode
Wall mounting, Ceiling mounting, T-rail mounting
Dimensions (Diameter x Height)
Φ 220 mm x 50 mm
Weight
1.08 kg
Port
1 x 10M/100M/GE/2.5GE electrical port
1 x 10M/100M/GE electrical port
1 x USB port
Bluetooth (BLE)
BLE 5.2
LED Indicator
Indicates power-on, startup, running, alarm, and fault states of the system
Power Input
DC: 12 V ± 10%
PoE power supply: in compliance with IEEE 802.3at
Maximum Power Consumption
21.2 W (excluding USB)
Operating Temperature
–10°C to +50°C (From 1800 m to 5000 m, decreases by 1°C for every 300 m increase in altitude)
Storage Temperature
–40°C to +70°C
Operating Humidity
5% to 95% (non-condensing)
Altitude
–60 m to +5000 m
Atmospheric Pressure
53 kPa to 106 kPa
IP Rating
IP41
Antenna Type
Built-in smart antenna
Antenna Gain
2.4 GHz: 4 dBi
5 GHz: 5 dBi
Maximum Quantity of SSIDs on Each Radio
≤ 16
Maximum Number of STAs
≤ 1536 (512/radio)
Maximum Transmit Power
2.4 GHz: 25 dBm (combined power)
5 GHz (2x2 MIMO): 23 dBm (combined power)
5 GHz (4x4 MIMO): 26 dBm (combined power)
BLE:
Power Adjustment Increment
1 dBm
Maximum Number of Non-Overlapping Channels
2.4 GHz (2.412 GHz to 2.472 GHz):
802.11b/g - 20 MHz: 3
802.11n - 20 MHz: 3, 40 MHz: 1
802.11ax - 20 MHz: 3, 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz):
802.11a - 20 MHz: 13
802.11n - 20 MHz: 13, 40 MHz: 6
802.11ac - 20 MHz: 13, 40 MHz: 6, 80 MHz: 3, 160 MHz: 1
802.11ax - 20 MHz: 13, 40 MHz: 6, 80 MHz: 3, 160 MHz: 1
