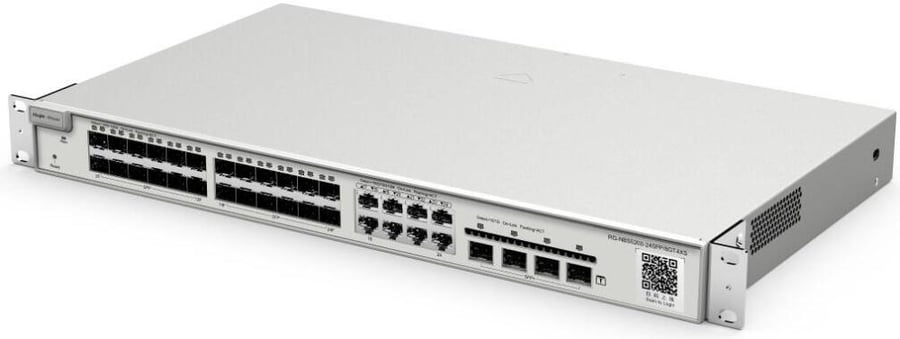

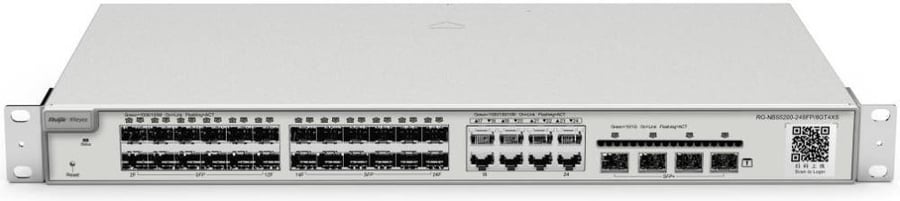

Ruijie RG-NBS5200-24SFP/8GT4XS, 24-port Gigabit Layer 3 Non-PoE Switch, Fixed 10G Up L3 Switch, 196Gbps Switching Capacity, 96Mpps Forwarding Rate, Link Aggregation | RG-NBS5200-24SFP/8GT4XS

نظرة عامة:
24-Port SFP L2+ Managed 10G Switch, 24 SFP Slots, 8 Gigabit RJ45 Combo Ports,4 *10G SFP+ Slots,19-inch Rack-mountable Steel Case, Static Routing

الوصف والمميزات:
RG-NBS5200-24SFP/8GT4XS
The Ruijie Reyee 24-Port SFP Layer 3 Non-PoE Managed Switch delivers high-performance and reliable network connectivity for enterprise environments. Featuring 24 SFP ports, 8 combo ports, and 4 SFP+ uplink ports, it provides flexible fiber connectivity and high-speed uplink expansion for demanding network infrastructures. Built with enterprise-class quality, the switch ensures stable performance, while 6KV surge protection helps minimize port damage caused by electrical surges. Advanced Layer 3 management capabilities and multiple security policies provide enhanced control, protection, and efficient network operation for modern businesses.
Specifications
Product Category
Layer 3 Managed Switch
Total Number of RJ45 Ports
8 (Including 8 Combo Ports)
Total Number of Optical Ports
28 (Including 8 Combo Ports)
Number of 1GE Combo Ports
8
Number of 1GE SFP Ports
24 (Including 8 Combo Ports)
Number of 10GE SFP+ Ports
4
Number of 10/100BASE-T Ports
No
Number of 10/100/1000BASE-T Ports
8 (Including 8 Combo Ports)
Number of 10/100/1000/2500BASE-T Ports
No
Number of 100/1000/2.5G/5G/10GBASE-T Ports
No
Forwarding Rate
96 Mpps
Switching Capacity
128 Gbps
MTBF
400,000 Hours
Operating Temperature
0°C to +50°C (32°F to 122°F)
Operating Altitude
-500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.)
Storage Altitude
-500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.)
Surge Protection (Service Port)
±6 kV Common Mode
Surge Protection (Power Connector)
±6 kV Common Mode and Differential Mode
PoE Watchdog
No
Jumbo Frame Length (MTU)
9216 Bytes (Interface Configuration Mode)
Port Isolation
Yes
Broadcast Storm Control
Yes
