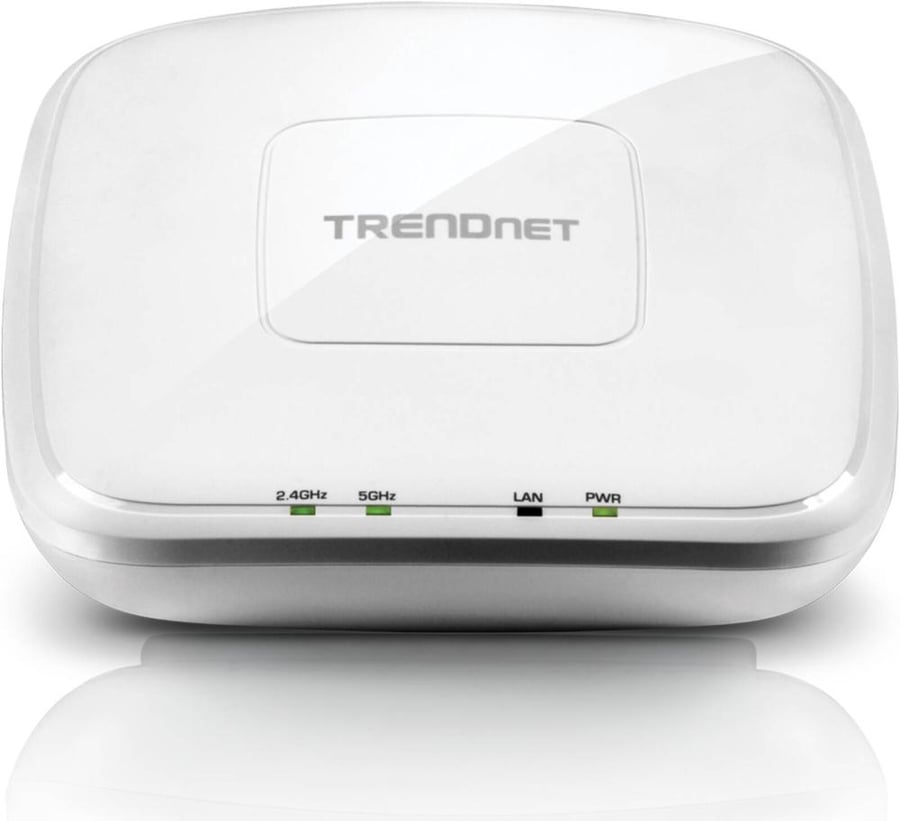

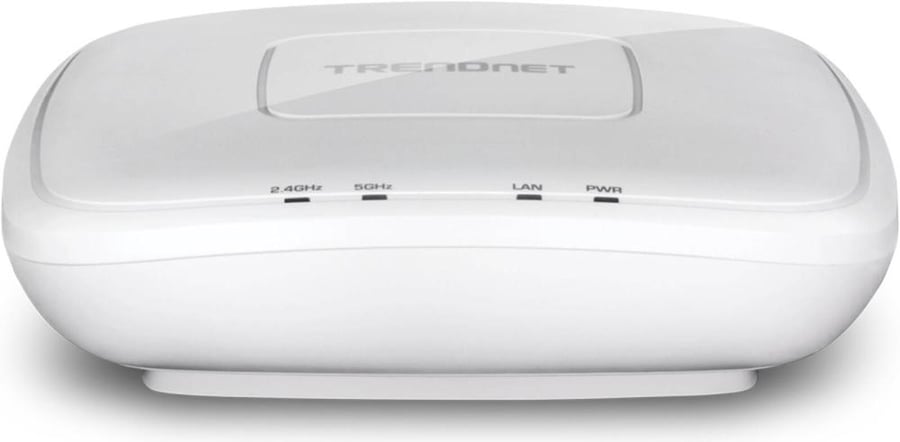

TRENDnet AC1200 Dual Band PoE Access Point, 867Mbps WiFi AC + 300Mbps WiFi N Bands, Gigabit PoE LAN Port, Centralized Management, Mounting Plate, White | TEW-821DAP

نظرة عامة:
AC1200 Dual Band Gigabit PoE Access Point (with (software controller

الوصف والمميزات:
AC1200 Dual Band PoE Access Point
Specifications
Standards
IEEE 802.1Q
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300 Mbps)
IEEE 802.11ac (up to 867 Mbps)
Hardware Interface
1 x PoE Gigabit LAN port
Power port (optional non-PoE installation)
Reset button
LED indicators
Mounting plate
Special Features
IP30 rated housing (with mounting plate installed)
Concurrent Dual band
Band Steering
WiFi traffic shaping
802.1Q VLAN assignment per SSID
IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)
Multi-Language interface, English, French, Spanish, German, Russian
LEDs on/off
Captive Portal (External Coovachilli server authentication)
Internal Captive Portal (Local user account authentication and customizable portal page)
802.11k roaming assistance support
RSSI Scanner (Client signal strength and tolerance)
Airtime Fairness
Operation Modes
Access Point
Client
WDS AP
WDS Bridge
WDS Station
Repeater
Management/Monitoring
Web based management
Software utility
SNMP v1/v3
STP
Event logging
Ping test
Traceroute
CLI
Utility OS Compatibility
Windows
®
10, 8.1, 8, 7, Vista, XP
Access Control
Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
MAC filter
Maximum client limit
QoS
WMM
Traffic shaping per SSID
SSID
Up to 8 SSIDs per wireless band (16 total)
Frequency
2.4 GHz: 2.412 – 2.472 GHz
5 GHz: 5.180 – 5.8525 GHz
Wireless Channels
2.4 GHz: FCC: 1 – 11, ETSI: 1 – 13
5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation
DBPSK/DQPSK/CCK for DSSS technique
BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 4 dBi
Wireless Output Power/Receiving Sensitivity
802.11a: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max), IC: 23 dBm (Max.) / -83 dBm (typical) @ 11 Mbps
802.11g: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -64 dBm (typical) @ 300 Mbps 2.4 GHz
802.11n: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -61 dBm (typical) @ 300 Mbps 5 GHz
802.11ac: FCC: 15 dBm (Max.), CE: 22 dBm (Max.), IC: 19 dBm (Max.) / -51 dBm (typical) @ 866 Mbps
Power
12 V / 1 A consumption: 9.6 Watts Max.
Operating Temperature
0 – 40 °C (32 – 104 °F)
Operating Humidity
Max. 95 % non-condensing
Certifications
CE
FCC
Dimensions
187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight
408 g (14.4 oz.)
