Features:

1.Safe & Durable.

2.Low Power, Environmental Protection.

3.Long Life with 500000 cycles.

4.MOV Provides Reverse Current Protection.

5.Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

6.Double protection for loading current.

7.Certificate:CE and FC

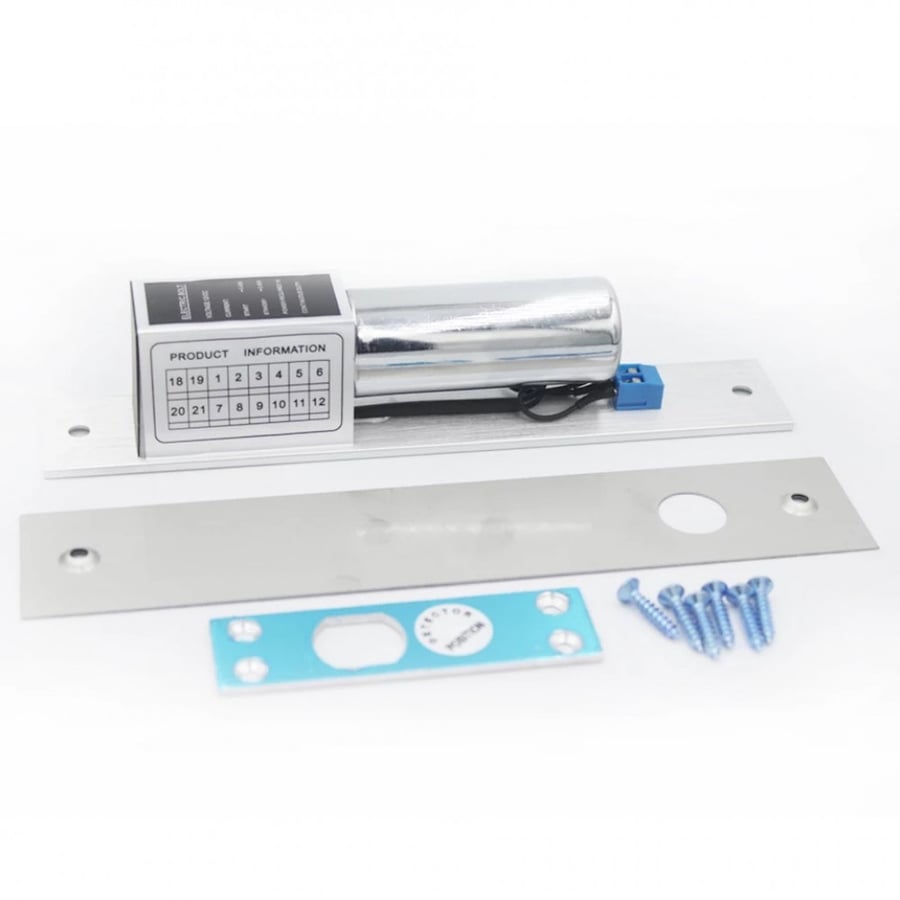

Package list:

• 1xElectric Lock
• 1xFace Plate
• 1xMagnetic Base
• 1xPack of Screws
• 1xUser Manual

Specification:

Feature

Fail Safe(locked when energized)

Face Plate

200LX35WX38Hmm

Voltage

12V DC

Start Current

410mA

Standby Current

350mA

Solid Bolt

polishing housing, 1000Kg Holding Force

Suitable For

Wooden Door,Glass Door,Metal Door,Glass Door

Induction Distance

8mm

Operating temp

-10～+55℃(14~131F)

Operating Humidity

0～90%(non-condensing)

Special Designed

Tested to 500000 cycles

Face place material

Aluminum

Weight

0.6KG
