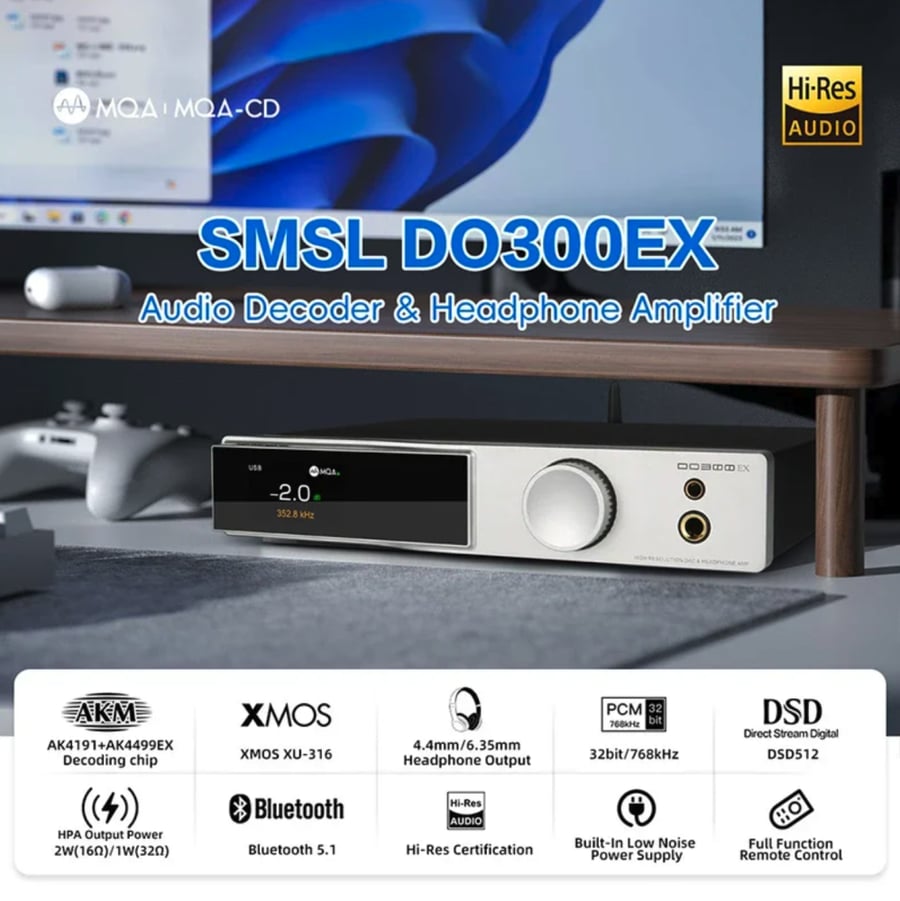

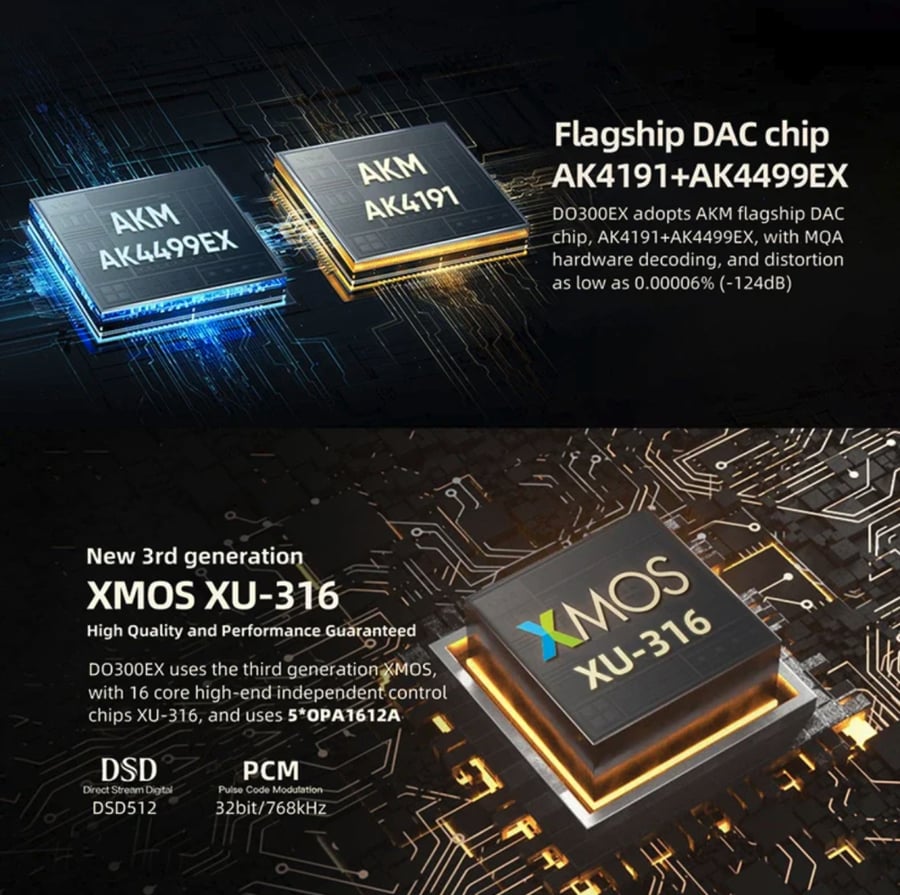

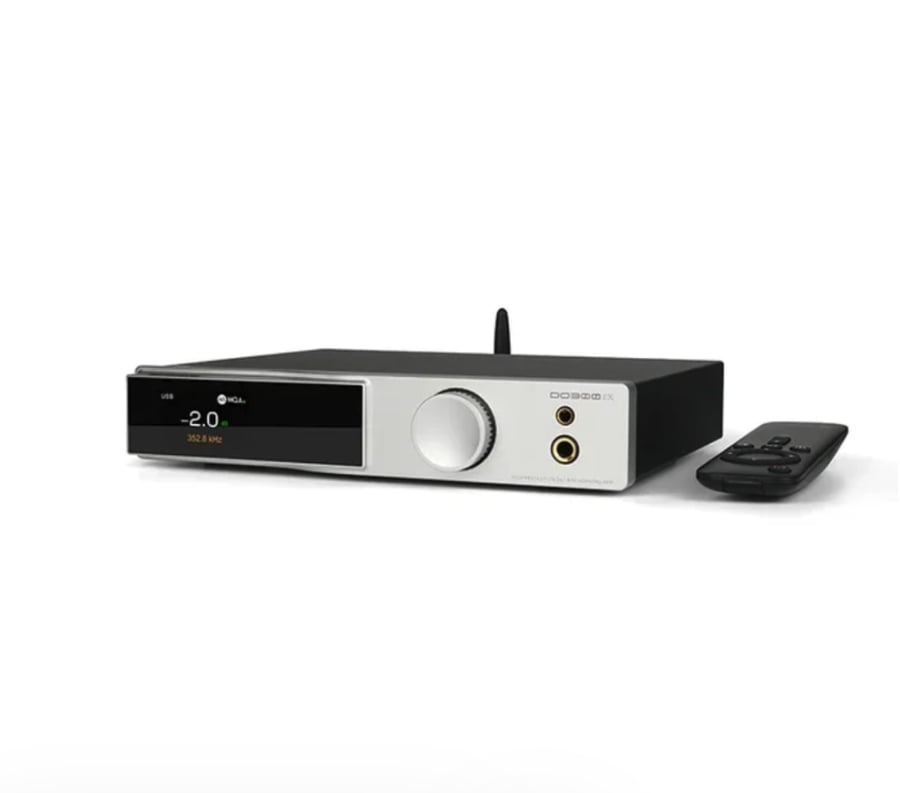

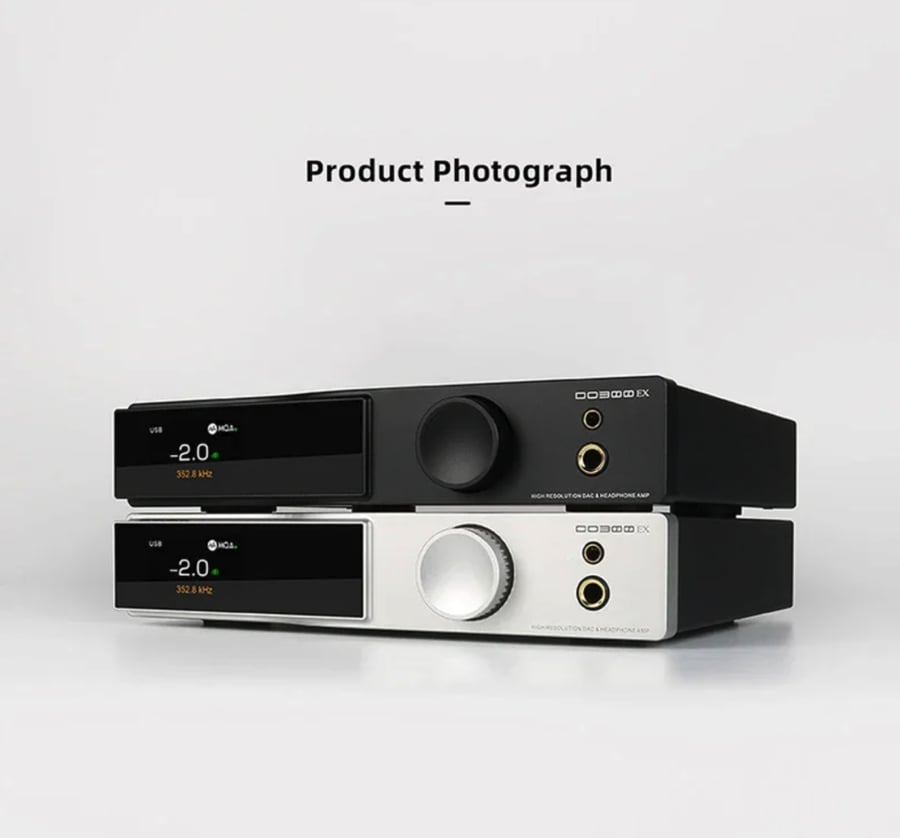

SMSL DO300EX Hi-Res Audio DAC AMP Headphone Amplifier AK4191 AK4499EX chip XU-316 Decoder Digital Pre-Amplifier PCM768 DSD512

المنتج قابل للشحن للدول التالية

السعودية - الإمارات - البحرين - الكويت - عُمان - قطر - الأردن - مصر

المواصفات :

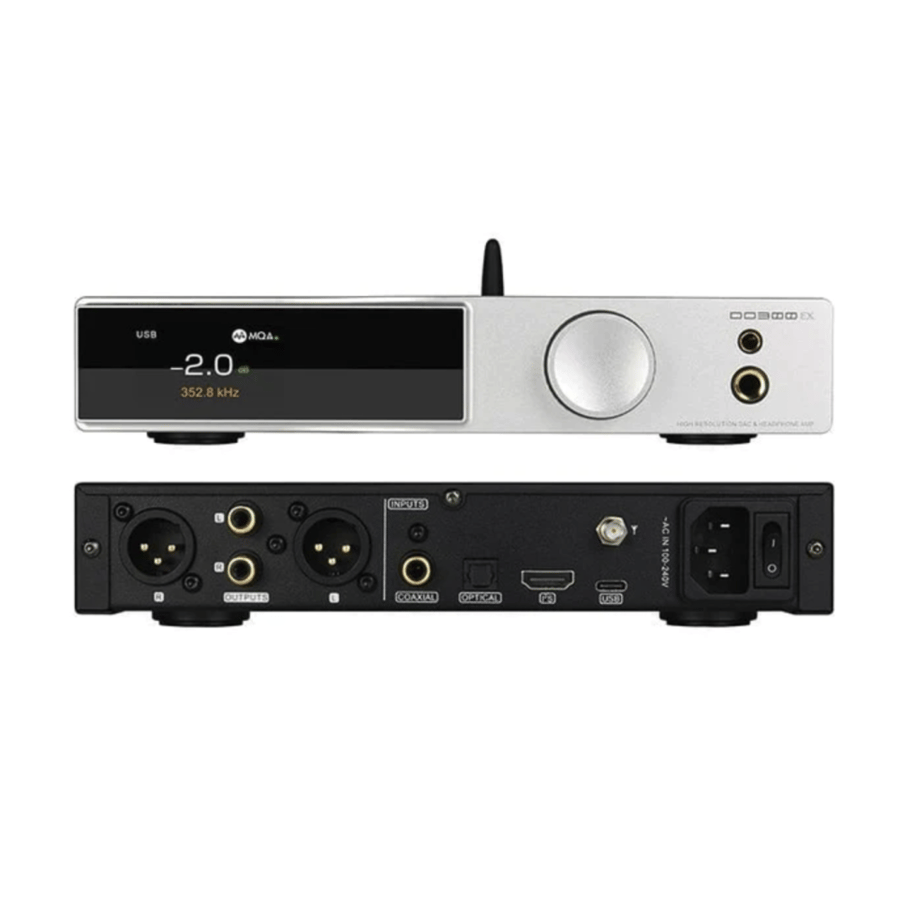

Input:USB/Optical/Coaxial/Bluetooth/I2S

Output:RCA/XLR/4.4mm+6.35 Headphone Jack

THD+N:0.00006%(-124dB)(UN-WTD)

HPA THD+N:0.0001%(-120dB)(UN-WTD)

Line output amplitude:

XLR 5Vrms

RCA 2.5Vrms

Headphome output power:2Wx2(16Ω) / 1Wx2(32Ω)

Output Impedance:

XLR 200Ω / RCA 100Ω / HPA near 0Ω

HPA gain control: low 0dB / high +7dB

Dynamic range:XLR 132dB / HPA 127dB

SNR: XLR 132dB / HPA 127dB

USB transmission:Asynchronization

USB compatibility:Windows 7 / 8 / 8.1 / 10 / 11(Needs Driver), Mac OSX10.6 or Later,Linux(Driverless)

MQA decoder:USB/Optical/Coaxial

Sampling rate & Bit Width:

USB PCM :44.1~768kHz(32bit)

2.8224~22.5792MHz(1bit)

DoP:DoP64~DoP256

Optical / Coaxial 44.1~192kHz(24bit)

DoP:DoP64

Bluetooth specification:5.1(Supports SBC,AAC,aptX,apt HD,LDAC(24bit/96kHz))

Power Consumption:<20W

Standby power:<0.5W

Size:222x39x207mm(WxHxD)

Weight:1.54kg/3.40lbs
