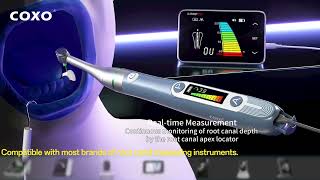

C-SMART MINI2 Endo motor

Adaptor working voltage:AC100-240V 50160Hz

Output: 5V 2.0A Input Power: 20VA

Lithium Battery

Voltage: d.c. 3.7V (Red + Black -)

Capacity: 800mAh

Classification by Shock Protection Level: Type B Application

Classification by Shock Protection Type: Class II (Adapter)

Adjustable torque, range:0.6-3.9N·cm

Rotation speed range:100-1000rpm

Non-continuous Operation: 5min on, 1min off

Classification by Liquid Ingress Protection Level: IPX0 (Unsealed equipment without liquid ingress protection)

Bending Machine (Application Part)

Bending Machine Speed ​​Ratio: 6:1

Bending Machine Material: Copper and Stainless Steel

Volume(mm):130.2x23.4x20.5

Weight/Pcs:67.4g

Packing material:carton

1) Lightweight and ultra-compact, body only 130.2*23.4*20.5mm

2) Simple appearans

3) Flexible operation, simple and easy-to-use interface; P button switches modes, A button adjusts (can be tested in practice)

4) Ultra-small mini bending machine, speed ratio 6:1, head height 10.2mm

5) The bending machine can rotate 360°, with direct plug-and-play functionality

6) Color real-time torque progress bar

7) Full-screen dynamic display of battery status during charging

8) Three user-customizable programs for more convenient root boring

9) Safer root boring process, equipped with automatic torque reversal and reversal alarm functions

10) In addition to the original continuous rotation and reciprocating rotation modes, a smooth path (OGP) mode is specially added (OGP mode is a step removal method: file forward 240° reverse 240°, forward 240° reverse 330° reciprocating cycle)
