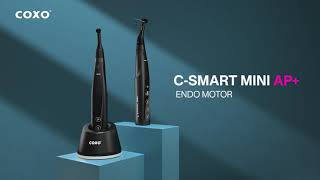

C-SMART MINI AP+ Endo motor

Adaptor working voltage:AC100-240V 50/60Hz

Input Power: 20VA;

Output: 5V 2.0A

Lithium Battery: Voltage: d.c. 3.7V (Red + Black -); Capacity: 1200mAh

Classification by Shock Protection Level: Type B (Application Section)

Classification by Shock Protection Type: Class II (Adapter)

Adjustable torque, range:0.6-5.0 N·cm

Rotation speed range:100-2500rpm

Non-continuous Operation: 5min on, 1min off

Classification by Liquid Ingress Protection Level: IPX0 (Non-liquid-proof enclosed equipment)

Bending Machine (Application Section)

Bending Machine Speed ​​Ratio: 6:1

Bending Machine Material: Aluminum Alloy and Stainless Steel

Overpressure Category: Class II

Contamination Degree: Level 2

Volume(cm):19*13*6

Weight(kg)/Pcs:0.7

Packing material:carton

1) Brushless motor, low noise, and long lifespan (the company's first brushless root canal preparation machine)

2) Integrated root canal treatment and apexography

3) Mini head, head height only 10.8mm (with apexography)

4) High speed, high torque: up to 2500r/min, maximum 5N/cm

5) Angle adjustable by 10°

6) Hand-held wake-up function

7) Built-in operation guide

8) Wireless charging

9) Color screen display

10) Intelligent mode for safer and more efficient root canal preparation

11) Special step-removal mode

12) Extended polishing mode, multi-functionality

13) Rich auxiliary functions:

long the A button for quick parameter adjustment, motor calibration, screen orientation switching,

automatic wake-up switch, automatic torque reversal switch, automatic apical reversal switch,

automatic apical deceleration switch, automatic start/stop switch, etc.

Safer: In addition to the power button, the device has a backup motor shutdown option (long-press the P button during operation).
