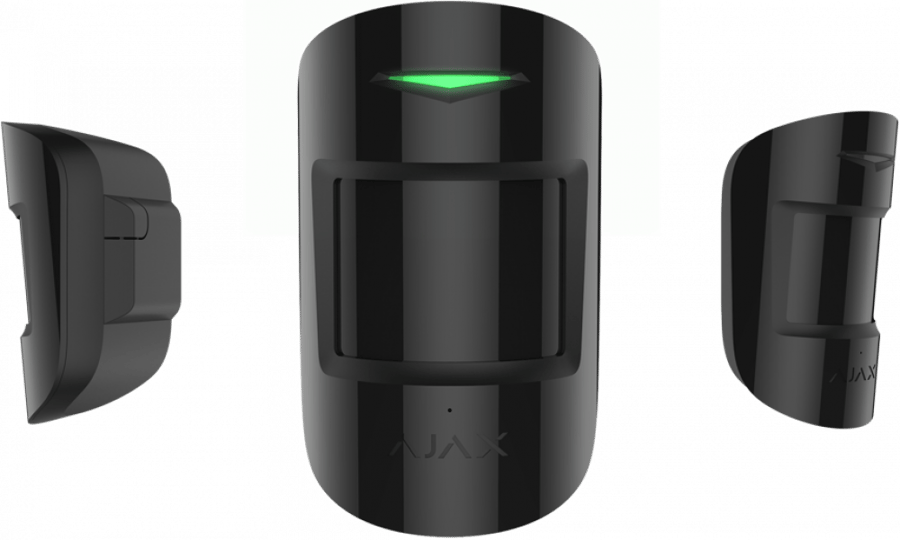

كاشف حركة داخلي الاسلكي مع كاشف االاهتزازات

المواصفات

كاشف حركة لاسلكي لاجهزة الانذار بتقنية المايكروويف و االاشعة تحت الحمراء تدعم مناعة الحيوانات الااليفة بدرجة حساسية عالية

Classification

Electro-optical combined radio channel security detector

Type of detector

Wireless

Installation method

Indoors

Compatibility

Operates with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge

Sensing element

PIR sensor, electret microphone

Alarm signal delivery time

0.15 s

Motion detection distance

Up to 12 m

Detection angles

Horizontal — 88.5°

Vertical — 80°

Recommended installation height

2.4 m

Pet immunity

Weight — up to 20 kg

Height — up to 50 cm

Break detection distance

Up to 9 m

Detection angle

180°

Sensitivity

Adjustable, 3 levels

Power supply

Battery: CR123A battery, 3 V

Battery life

Up to 5 years

Learn more

Jeweller radio technology

Communication range with central unit — up to 1,200 m in an open space

Two-way communication between devices

Operating frequencies — 868.0-868.6 MHz

Self-adjusting RF output power — up to 20 mW

Block encryption based on AES algorithm

Detector polling period — 12−300 s

Learn more about Jeweller

Temperature sensor

Available

Operating temperature range

From -10°С to +40°С

Permissible humidity

Up to 75%

Anti-sabotage

Protection against fraud

Jamming detection

Tamper-resistant

Remote setting and testing

+

Dimensions

110 × 65 × 50 mm

Weight

92 g

Certification

Grade 2, CE

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

CombiProtect combined motion and glass break detector

SmartBracket mounting panel

CR123A battery (pre-installed)

Installation set

User's guide

AJAX Security Wireless Motion Detecor Dual Sensor ( PIR & MW )support Pet Immunityزجاج أمان AJAX يكسر عالي الحساسية
