Package Include:
1 x Manual
1 x Car DVR
1 x Power Cord
Dash Cam Specific Features:
1.Brand Name: Jabriel
HD 1080P:
CPU: Novatek 96672
Image Sensor: Sony IMX323
Max External Memory: 128G
Camera Resolution: HD 1080P
2K 1600P :
CPU: Novatek 96675
Image Sensor: Sony IMX307
Max External Memory: 128G
Camera Resolution: 2K 1600P
4K 2160P :
CPU: Novatek 96670
Image Sensor: Sony IMX335
Max External Memory: 256G
Camera Resolution: 4K 2160P
Video Format: Mp4 / TS
Interface: Wi-Fi; Micro SD/TF
Battery Life: Connect to the Fuse Box or Rain Sensor
2.Special Features: New plug and play(option); 24-Hour Parking Monitoring (option) ; WIFI Function ; Night Vision ; Auto Power; G-sensor; Microphone; Anti Surge Voltage Impact; Anti Vibration; Real Time Surveillance; Time synchronization; Cyclic Recording; Automatic White Balance; Wide Dynamic Range.
3.OSD Language: English;multi-language
4.APP: Please download " TimaCam " or "RoadCam" APP from Apple Store or Google Play Store.
The Wifi name is : CarDV_XXX ; The password is : 12345678
Please Contact customer service to send photos when you buy it!
1: Because this product is dedicated, to avoid installation or other problems, please tell us which year and which model of your car, and take photos for the rear view mirror bracket of your car .
2:The Rain Sensor Cable can only be used for 70% of specific car models , if you need the Rain Sensor Cable , please send us photos for the rain sensor interface of your car , then we can check it.
For Example:

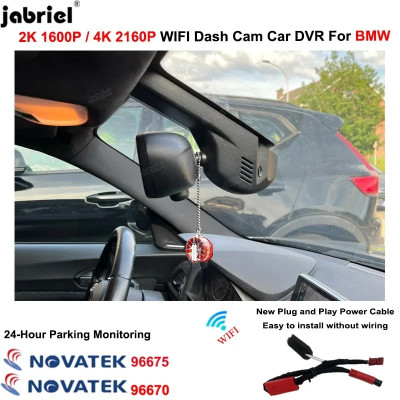

2K 1600P / 4K 2160P New Plug And Play Hidden WIFI 24-Hour Parking Monitoring Dash Cam Car DVR For BMW
New Plug and Play Car Dvr Dash Cam Easy to install
Connect to the rain sensor or reading light of the Original car
The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.
256G·Smart Storage
Big, Regarding the overall improvement of storage,
Support 8-256 GB Keep driving records longer.
Safety explosion protection
High and low temperature resistance,no built-in battery design, more
safer Automotive fuse power, built-in low voltage monitoring,
automatic shutdown, non-destructive battery.
Novatek Monitoring Chip, Ultimate Experience
Novatek chip is equipped with realtek WIFI solution, H.265 video
coding technology makes the recorder image clear and smooth,
image details and color rich and supports
256 G large memory card operation.
Revolutionary clarity coding breakthrough
HEVC/H.265 video coding
50% better than H.264 video encoding performance
Make the image details richer, and the color
details are more realistic.
Sony high sensitivity + F1.8 aperture
Fearless darkness Direct view Blind zone
Sony MIX335
high-sensitivity chip with F1.8 large aperture lens,
Proud staris technology and upgraded sensible parts to 2.9μm,
The large amount of light makes the lens night the same as the daytime
Built-in WDR wide dynamic technology
WDR technology uses DSP circuit to expose the bright and dark parts with
the appropriate shutter speed, and the two images are processed by DSP,
so that the over-bright and over-dark parts can be seen clearly.
Gravity Sensing
When a violent collision occurs, the emergency backup recording function is
automatically recognized and activated, and the important evidence locking protection
is stored in the memory card to prevent loss of coverage.
Link WIFI Control
Please download TimaCam or RoadCam APP from Apple Store or Google Play Store.
The WIFI Name is: CARDV**** or Y06-****
The password is : "12345678" or "88888888"
Real Video Display
The image is compressed and actually very clear
Cycle Recording without leaking seconds Video segmentation
recording, when the video is full, the recorder will automatically
delete the previously recorded video clips and record them in
a loop, so that you don't have to worry about frequent card changes.
24-hour parking monitoring
Intelligent Anti-Shake
Cable Connection

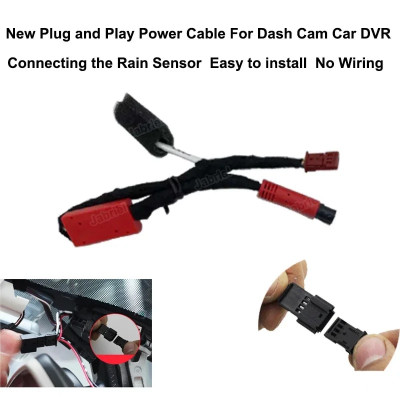

New Plug and Play Power Cable:
Connect to the rain sensor or reading light of the original car.
Standard ACC Power Cable:
Reference Installation Guide
1. Before installation
First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!
2. Installation
The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.
(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off. it is ACC.
(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.

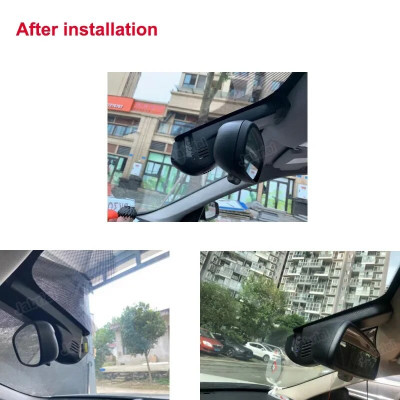

3. After installation
The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).
Note: Any questions or problems, please contact us , we will try our best to serve you until you are satisfied.Communication can solve any problem!
