لوحة تعليمية امبيديوكيت EmbEducate

لوحة تعليمية امبيديوكيت EmbEducate V1.1.0

لوح تعليمي شامل ومتكامل، صُمم خصيصاً لتبسيط تعلم الأنظمة المدمجة وتسريع تطوير نماذج إنترنت الأشياء (IoT). تم تصميم هذه الحقيبة المتعددة الاستخدامات لتناسب الطلاب، المعلمين، وعشاق الإلكترونيات.

تتميز اللوحة باحتوائها على متحكمين دقيقين: متحكم STM32U585 (WeAct BlackPill) عالي الأداء لمعالجة عمليات التحكم المعقدة، ومتحكم ESP32-S3 لتوفير اتصال سلس عبر الواي فاي والبلوتوث، مما يربط بين برمجة المتحكمات التقليدية وتطبيقات إنترنت الأشياء الحديثة.

EmbEducate V1.1.0

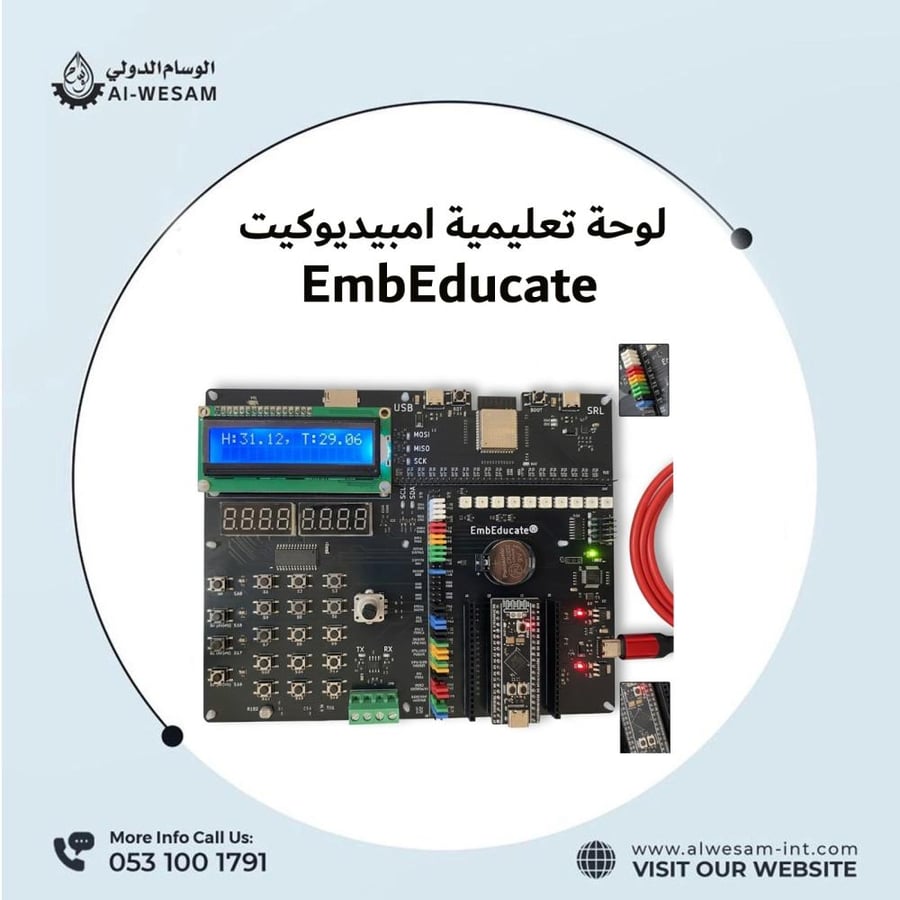

The EmbEducate Training Board is a comprehensive, all-in-one educational platform engineered to simplify embedded systems learning and speed up IoT prototyping. Designed specifically for students, educators, and electronics enthusiasts, this versatile kit eliminates the hassle of breadboard wiring by providing a rich array of integrated sensors, display, and communication interfaces on a single robust PCB.

Equipped with dual microcontrollers—the high-performance ARM Cortex-M33 STM32U585 (WeAct BlackPill) for professional embedded systems and an ESP32-C3 for seamless Wi-Fi and Bluetooth connectivity—the board bridges traditional microcontroller programming with modern Internet of Things applications. Featuring onboard USB Type-C connectivity throughout, an integrated debugger, and a rich set of user peripherals, the EmbEducate board provides a complete hands-on environment to master everything from low-level GPIO control to advanced cloud-connected systems.

Documentation is available at https://github.com/EmbEducate/EmbEducate

Technical Specifications

Category

Specification / Feature

Core Processing

• Primary MCU: WeAct BlackPill STM32U585 (ARM Cortex-M33)

• Secondary MCU: ESP32-S3 (16R8) with Wi-Fi & Bluetooth

User Displays

• I2C LCD1602 Display (Blue Backlight)

• TM1638 Module driving 8× 7-Segment Digital Displays

Inputs & Controls

• 15× Push Buttons (via TM1638 driver)

• 4× Direct-Reading Push Buttons

• 1× Rotary Encoder with push-button switch

Sensors & Analog Inputs

• I2C Digital Temperature & Humidity Sensor

• I2C High-precision RTC with temperature compensation.

• Light-Dependent Resistor (Photoresistor) for ambient light sensing

• NTC Thermistor for analog temperature measurement

Lights & Actuators

• 10× Addressable RGB LEDs

• 4-Line 5V Stepper Motor Driver circuit. Each line is connected to an LED.

Memory & Storage

• 16 Mbit SPI Non-Volatile FRAM (Ferroelectric RAM)

• MicroSD Card Slot for data logging

Communication & Buses

• RS485 Transceiver Interface

• I2C and SPI expansion buses

Power & Debugging

• Onboard SWD/JTAG Debugger

• All board ports utilize USB Type-C interfaces

Package Includes

·      1× EmbEducate Training Board

·      1× USB Type-C Cable (1 meter)

·      10× Female-to-Female Dupont Jumper Wires
