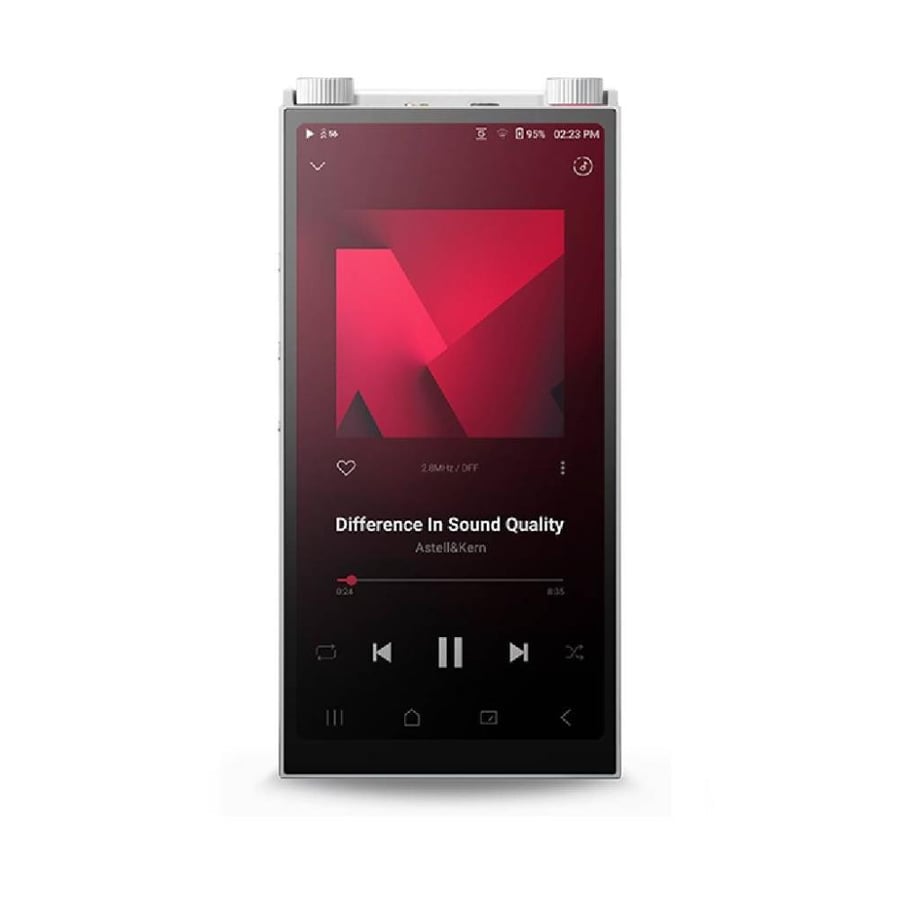

Astell&Kern PD20 Digital Audio Player

Description

Craft Your Sound

Finding the sound that truly suits you is the first step toward the essence of music. PD20 is designed to guide you on that journey.

Our first step in this journey was to start from the very beginning. Rather than creating a successor to the PD10, we created an entirely new audio device that will redefine your musical experience.

Through Personal Sound, you can create a sound signature tailored to your hearing, then precisely refine it to your taste using the Sound Master Wheel. An intuitive control that allows even the amplifier driving mode to be changed with a single touch. Now, music is not just something you listen to. It is something you shape.

Features

The first DAP to support personalized sound through a hearing test

160-step EQ control via the Sound Master Wheel

Triple AMP Class with real-time switching

Class A current control with High / Mid / Low modes

Proprietary ESA (Enhanced Signal Alignment) technology to minimize group delay

Advanced DAR

Specifications

General Specifications

Model

PD20

Body Color

Silver

Body Materia

Aluminum

Display

6inch 2160 x 1080 Touch screen

Supported Audio Formats

WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF

Sample rate

PCM : 8kHz ~ 768kHz (8/16/24/32bits per Sample)

DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo

DSD256(1bit 11.2MHz), Stereo / DSD512(1bit 22.4MHz), Stereo

Output Level

Unbalanced 5Vrms │ Balanced 10Vrms (Condition No Load)

CPU

Octa-Core

DAC

ESS ES9027PRO x4 (Quad-DAC)

Decoding

Support up to 32bit / 768kHz Bit to Bit playback

Input

USB Type-C input (for Charging & PC & MAC)

Outputs

Unbalanced Out (3.5mm), Optical Out(3.5mm)

Balanced Out (4.4mm, only 5-pole supported)

AK Cradle Compatibility

Supported

Wi-Fi

802.11 a/b/g/n/ac (2.4/5GHz)

Bluetooth

V5.3 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC, LHDC, SBC, AAC)

Dimensions

3.05” (77.5mm)[W] x 6.12” (155.7mm)[H] x 0.68” (17.3mm)[D]

Weight

about 11.04oz (313g)

Feature Enhancements

Firmware upgrade supported (OTA)

Operating Temperature

0℃ ~ + 40℃ (32℉~ 104℉)

Audio Specifications

Frequency Response

±0.005dB (Condition : 20Hz~20kHz) Unbalanced │ ±0.010dB (Condition : 20Hz~20kHz) Balanced

±0.020dB (Condition : 20Hz~70kHz) Unbalanced │ ±0.020dB (Condition : 20Hz~70kHz) Balanced

S/N

124dB @ 1kHz, Unbalanced │ 127dB @ 1kHz, Balanced

Crosstalk

-133dB @ 1kHz, Unbalanced │ -140dB @ 1kHz, Balanced

THD+N

0.0003% @ 1kHz, Unbalanced │ 0.0004% @ 1kHz, Balanced

IMD SMPTE

0.0006% 800Hz 10kHz (4:1) Unbalanced │Balanced

Output Impedance

Unbalanced Out 3.5mm (0.7ohm) │ Balanced Out 4.4mm(1.7ohm)

* Audio measurement specifications are based on AMP Class AB.

Clock Source

Clock Jitter

25pS (Typ.)

Reference Clock Jitter

250 Femto Seconds

Storage Capacity

Built-in Memory

256GB [NAND]

External Memory

microSD x1 (Max. 2TB)

Battery Capacity

5,770mAh 3.8V Li-Polymer

Charge Time

about 4hours (PD3.0 Charging)

Playback Time

about 14hours (Standard : FLAC, 16bit, 44.1kHz, Vol.50, Class AB, LCD Off)

Supported OS

Windows 8,10,11(32/64bit) MAC OS X 10.7
