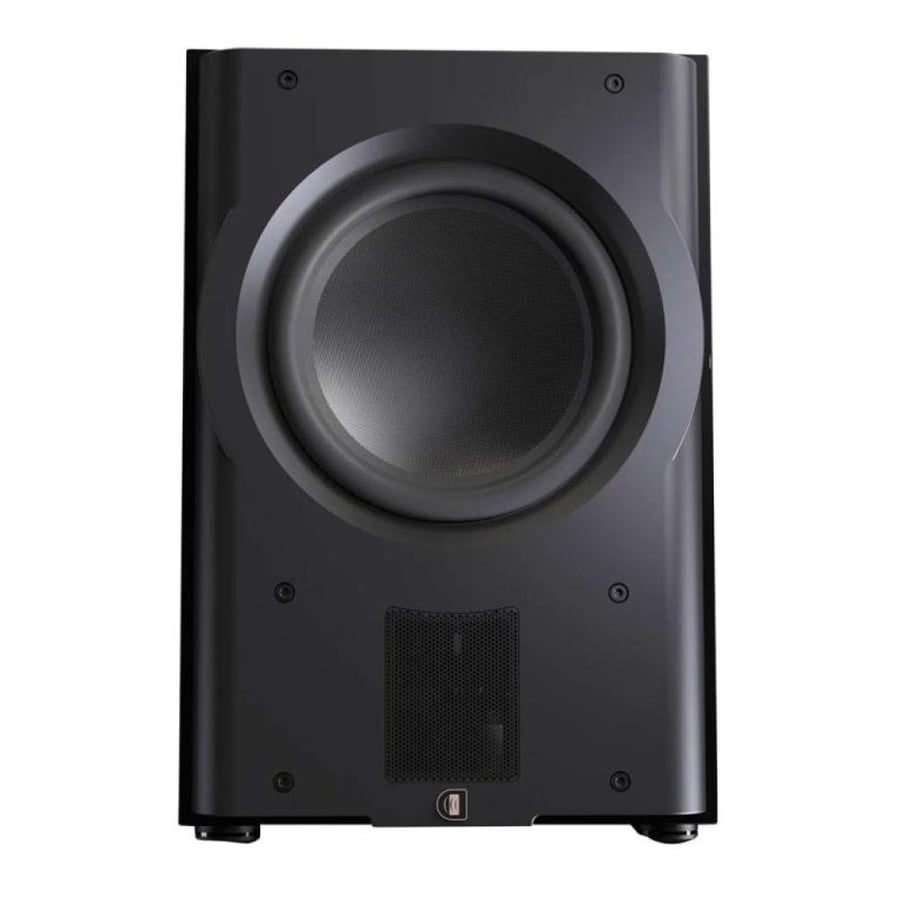

Perlisten R212s Subwoofer

Alignment: Push-Pull, acoustic suspension

Amplifier: 1.3kW rms short term

Display Interface: 2.4” LCD color touchscreen

App: iOS and Android

Processor: 32-bit ARM Cortex M4, double precision floating point math

DSP Engine: Ti DSP 48-bit data paths

Driver compliment:

- (2)300mm, Glass fiber diaprhragm

- +/-20mm linear excursion

Frequency Response:

THX EQ: 20-256Hz (-6dB) / 16-278Hz (-10dB)

Boost (Large Room) EQ: 16-256Hz (-6dB) / 14-278Hz (-10dB)

Cut (Small Room) EQ: 25-256Hz (-6dB) / 19-278Hz (-10dB))

Inputs:

- (2) Balanced XLR

- (2) Unbalanced RCA

Outputs:

- (2) Balanced XLR unbuffered

- (2) Unbalanced RCA unbuffered

Parametric EQ: 10-Band PEQ with 3 user presets

Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct

Phase: Variable 0-270°

Polarity: Normal / inverted

Configurable Auto turn-on and 12v Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2

Dimensions (HxWxD):

- 600 x 410 x 500mm

- 23.6 x 16.1 x 19.7”

Weight: 48.2 kg (106.0 lbs.)

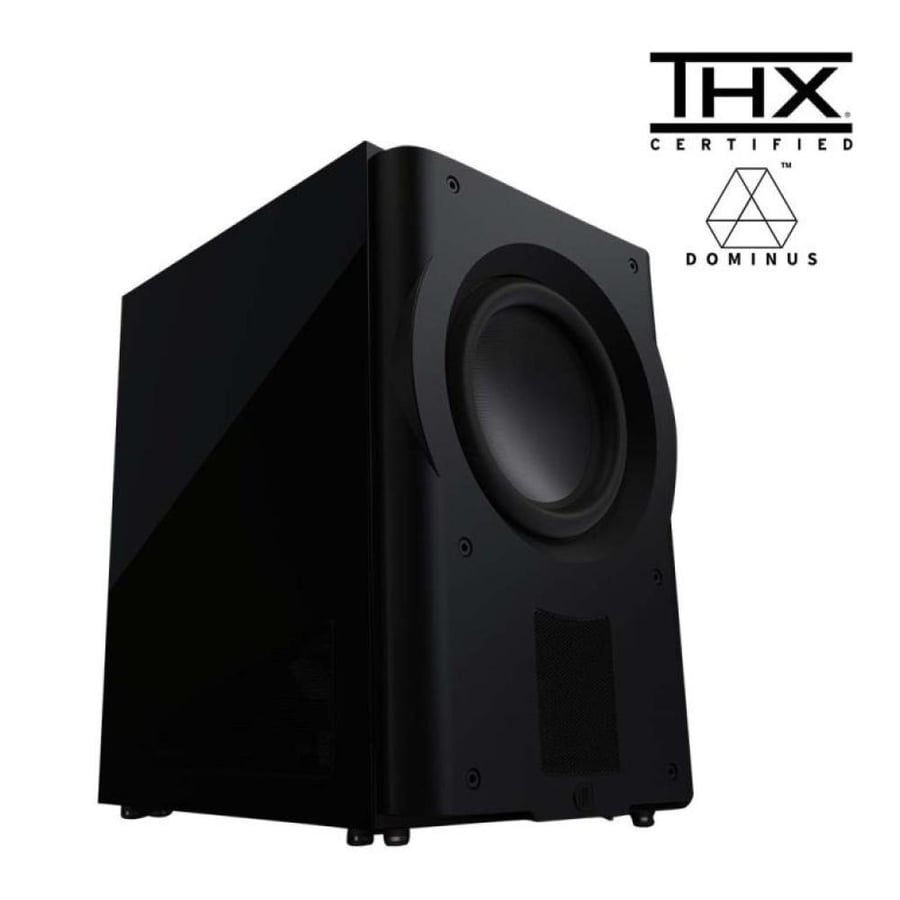

Certification: THX Dominus (2), THX Ultra (1)

Available finishes: Piano black
